Balboa SET Control unit GL2000 Mach3 3.0kW + control panel ML700

Product detailed description

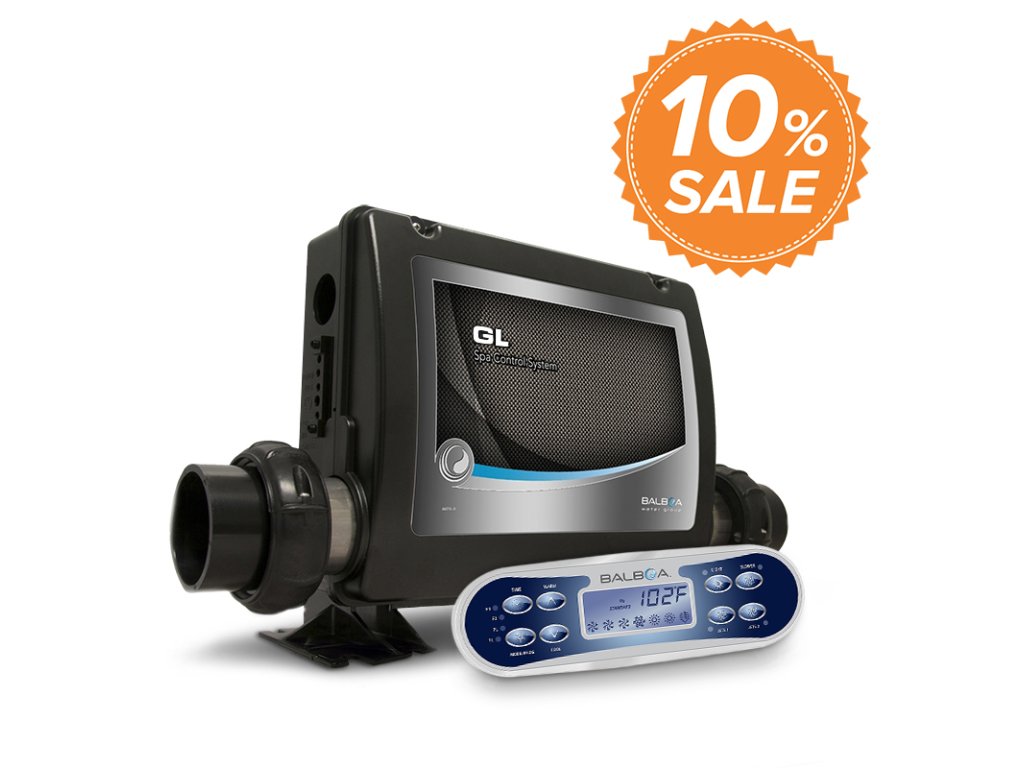

• Balboa Complete control set GL2000

  • If bought as a set price lowers by 10 % compared to price when purchased single components separately.

  Control unit

  GL2000

  Serie of control systems Global Elite (GL) is designed to meet reliability, easy installation and operation.

  • RoHS approved / Environment friendly
  • European safety approval
  • Better and easy installation and service

  Control system from the company Balboa quarantee smooth and faultless whirpool operation and it can be installed to the most spas.

  Control systems GS, GL and BP are delivered with the latest technology M7, meaning there is no need of external temperature sensor in your spa, or of pressure or flow switches in order to detect water flow. This technology consists of two sensors M7, one on each end of the heater which enhances flow and water temperature detection in one step.

  Specification

  • Pump 1: one-speed or two-speed massage pump + circulatory pump if required
  • Pump 2: one-speed massage pump or two-speed one only if a tub is without a compressor
  • Pump 3 or compressor: yes if pump 2 is one-speed one
  • Heater: 1× (3kW)
  • Ozonizer: 1×
  • Lighting: 1× 12V nebo 230V
  • Connection option TV/AV, radio

  Dimensions

  300 × 500 mm

  Control panel

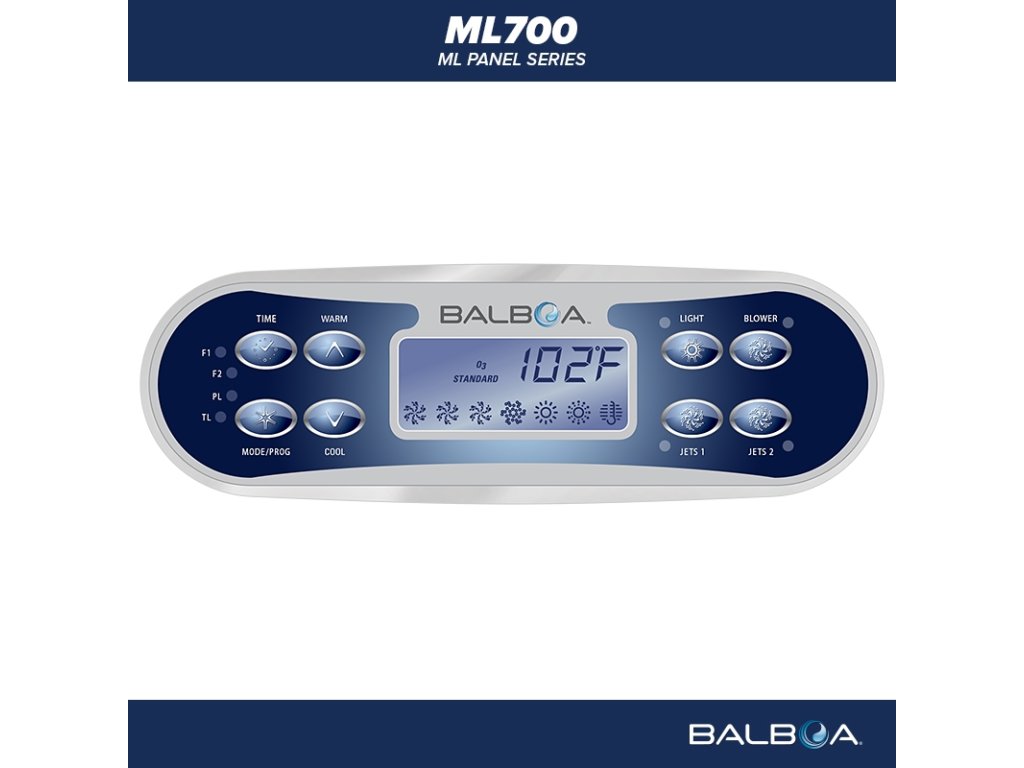

  Control panel Balboa ML700

  Control panel Balboa of the serie ML.

  Specification

  • Connection type: Mate n Lok (8 pin)
  • Buttons: Time, Mode/Prog, Warm, Cool, Light, Blower, Jets 1, Jets 2

  Dimensions

  249 × 79 mm

  Important information

  These control panels must be installed by a qualified worker or seller who is trained and qualified appropriately!

  Files to download

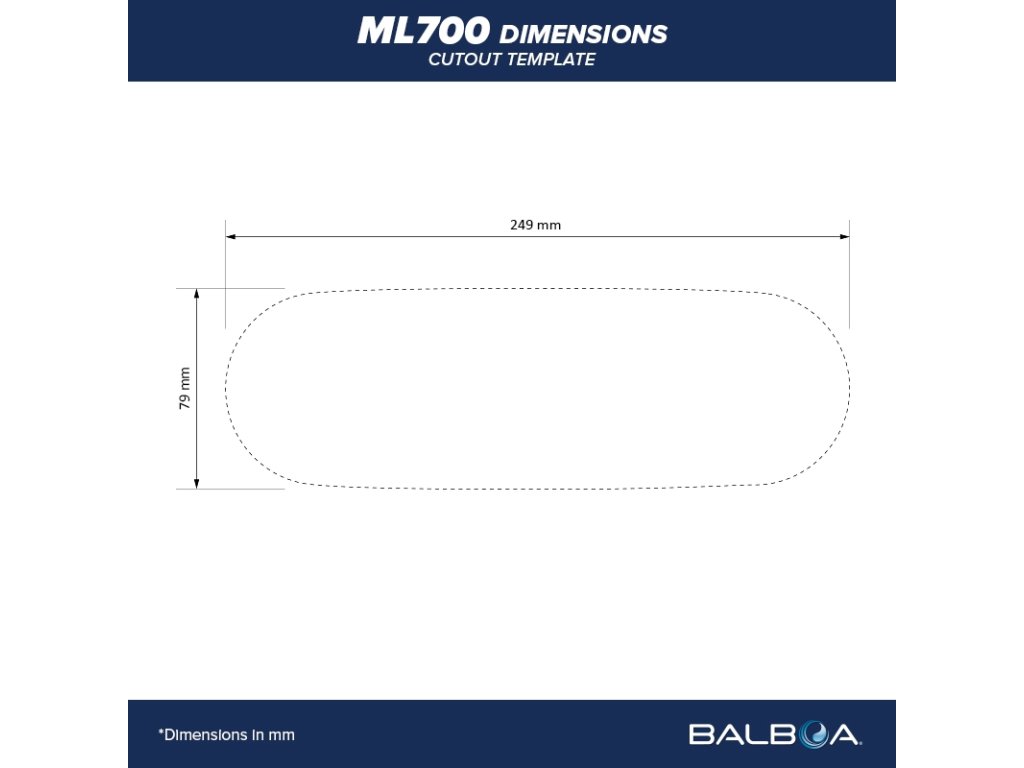

  • ML700 – Dimensions (Cutout)
