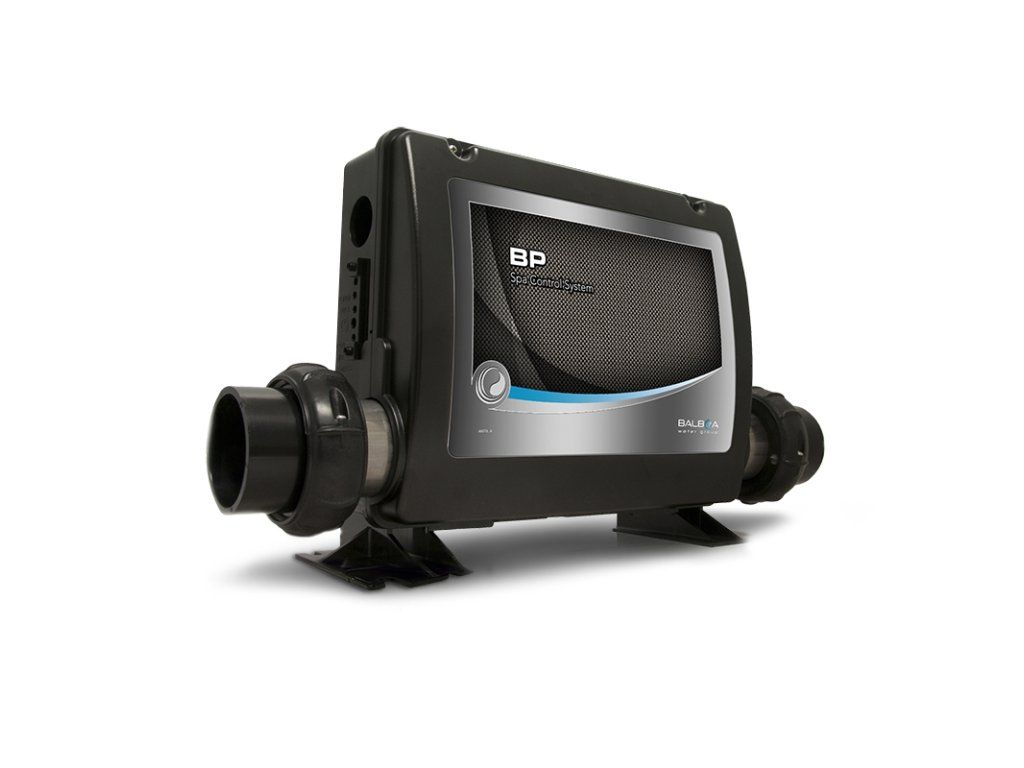

Balboa control unit BP21P4BC - 3.0kW - 825 Incoloy

Product detailed description

This highly efficient control unit BP21P4BC is one of the first systemswhich can be connected with Wi-Fi modul and through application Balboa Worldwide App (bwa) control the whirpool via a phone, or a tablet using operating system Android, or iOS by Apple. Designed for SWIM SPA.

• Wi-Fi support
• New function in a new design
• More resistant against fire and impact
• One of the most popular Balboa models

The control systems GS, GL and BP are supplied with the latest technology M7 which means there are no other external thermal sensors needed, the same applies to pressure and flow switches. This technology consists of two sensors M7, one at each end of the heater which offers better way of water flow and water temperature detection.

Compatible controllers

This control unit is compatible with series of touch panels Balboa SpaTouch and with TP series such as TP800 a TP900.

Specifications

• Pump 1: single-speed or two-speed massage pump.
• Pump 2: single-speed or two-speed massage pump.
• Pump 3: single-speed massage pump.
• Pump 4: single-speed massage pump.
• Circulation pump: single-speed massage pump.
• Compressor: 1 ×
• Heating: 1 × (3kW)
• Ozonizer: 1 ×
• Lighting: 1 × 10V / 1A
• Possibility to connect TV / AV, radio
• Possibility to use WiFi receiver for control via iPhone.
