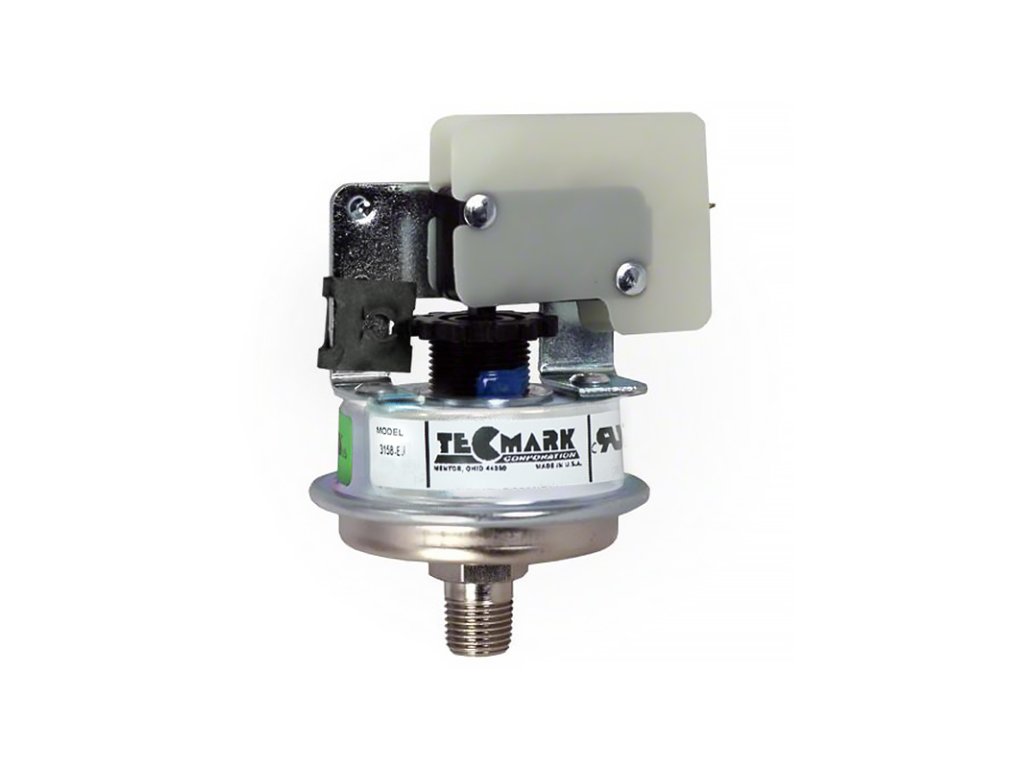

Balboa Pressure switch - Tecmark 1 psi 3158-EJ

Pressure switch Balboa Tecmark – 3158-EJ with 1/8" (10 mm) screw for assembly directly into a body of the heater Balboa.

When pressure is changed it closes or opens electrical circuit. Possibility of manual pressure setting when it switches on. The switch provides stability in the wide range and changeable temperature and when humid, extreme impact or vibration. It provides excellent output and lifetime of 100 000 cycles when fully mechanically, electrically and thermally used. Simple assembly.

Specification

• Inlet diameter: 10 mm
• 3 Amp
• 2 flat connectors
• 1 psi

Compatible with heater:

• 50150 – Balboa Heater 5.5 kW 800 Incoloy – M1
• 50140 – Balboa Heater 5.5 kW 800 Incoloy – M1
• 58081 – Balboa Heater 4.0 kW 800 Incoloy – M1
