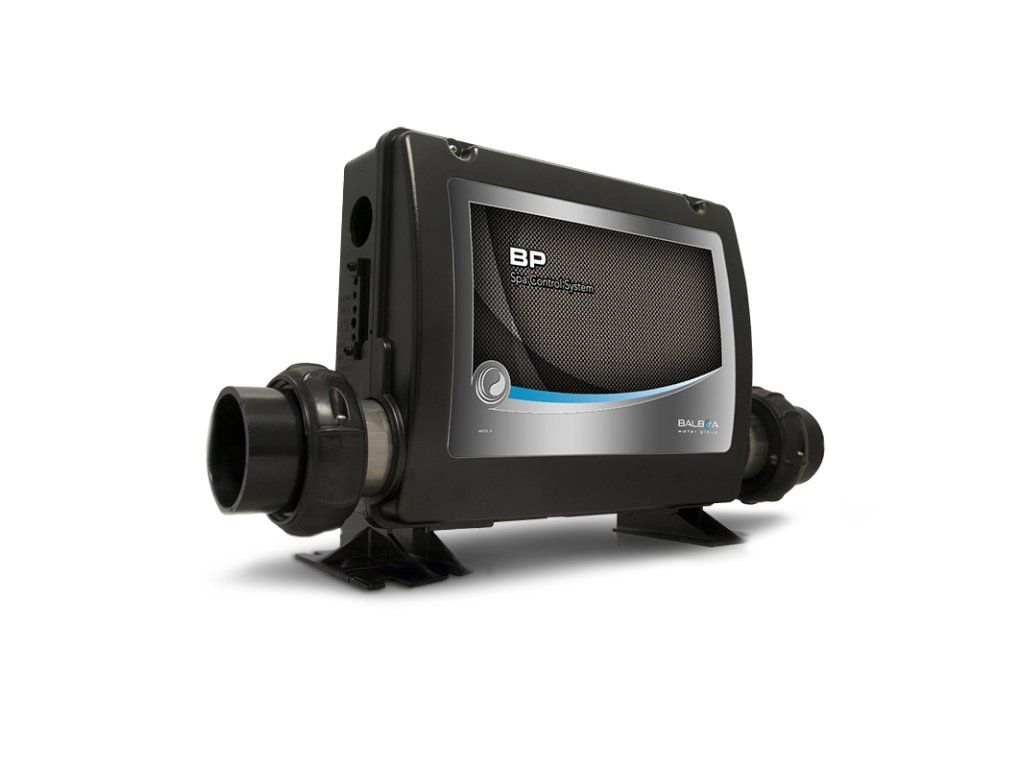

Balboa BP6013G1 Control Unit (WiFi Ready) - 3.0kW - 56611-06
A new generation of reliability for your hot tub. The Balboa BP6013G1 control unit with integrated 3kW heating is a technologically updated brain for medium-sized hot tubs. It features reliable M7 sensor technology, increased board durability, and full support for a Wi-Fi module.
Balboa BP6013G1 – control system with 3.0 kW heater
Balboa BP6013G1 56611-06 is a hot tub control system with an integrated 3.0 kW Incoloy heater. The unit can operate a separate circulation pump, one single-speed or two-speed massage pump and either another single-speed pump or an air blower.
Control-system description
The Balboa BP6013G1 is a complete control solution for medium-sized hot tubs. The system includes an integrated 3.0 kW Incoloy heater with a 2" connection.
It supports a separate circulation pump, one main massage pump and one auxiliary output. Depending on the configuration, the auxiliary output can operate another single-speed massage pump or an air blower.
An ozonator, underwater light and compatible Wi-Fi module can also be connected. Once the Wi-Fi module has been installed, supported spa functions can be controlled remotely from a smartphone or tablet.
Supported spa equipment
Pumps and air blower
- separate circulation pump,
- one single-speed or two-speed massage pump,
- another single-speed pump or air blower,
- programmable filtration cycles.
Additional accessories
- ozonator,
- underwater lighting,
- optional Wi-Fi module,
- selected AV, audio or TV accessories depending on configuration.
Technical specifications
| Manufacturer | Balboa Water Group |
|---|---|
| Model | BP6013G1 |
| Part number of the offered version | 56611-06 |
| Product type | Hot tub control system with integrated heater |
| Heater output | 3.0 kW |
| Heater material | Incoloy |
| Power supply | 230 V / 50 Hz |
| Factory configuration | Single-phase power supply |
| Alternative configuration | Two- or three-phase load distribution available |
| Circulation pump | Yes |
| Main massage pump | Single-speed or two-speed |
| Auxiliary output | Single-speed pump or air blower |
| Ozonator | Yes |
| Underwater light | Yes |
| Wi-Fi | WiFi Ready – module sold separately |
| Height | 300 mm |
| Heater length without fittings | 380 mm |
| Heater length with fittings | 498 mm |
| Depth | 108 mm |
| Heater connection | 2" |
| Warranty | 2 years |
Compatible control panels
The system can be used with the following Balboa main control panels. The selected panel must match the software configuration and the number of controlled functions.
Main control panels
Auxiliary panels without a display
Part numbers and replacement parts
| Offered Spa-components version | 56611-06 |
|---|---|
| Older related part numbers | 56281 and 56610-06 |
| Replacement circuit board | 59147 |
| Replacement heater | 58279 – Balboa 3.0 kW M7 Plug N’Click |
| Heater connection | 2" unions |
| Recommended accessories | Heater gaskets, split nuts and cable gland |
Power supply and configuration
The control system is supplied pre-configured for a single-phase power supply. With professional configuration, the connected loads can also be distributed between two or three phases.
The possibility of a multi-phase connection does not mean that the system can be wired in any arrangement. Jumpers, DIP switches, connected equipment and the power cable must be configured in accordance with the technical documentation for the specific revision.
How to verify compatibility
Not sure whether this is the correct replacement?
Send us photographs of the original control-system label, circuit-board label, topside panel, connector wiring and the labels of all connected pumps.
For an accurate assessment, we need to know the number and type of pumps, whether an air blower is used, the power supply, control-panel type and the complete part number of the original system.
Installation and safety
- Installation must be carried out by a qualified electrician or spa-service technician.
- The hot tub must be completely disconnected from the electrical supply before installation.
- Circuit protection, residual-current protection, cable size and protective bonding must be checked.
- Jumpers, DIP switches and output configuration must match the connected equipment.
- Incorrect configuration may damage the control system, heater or connected equipment.
- A complete functional and safety inspection must be carried out after installation.
Frequently asked questions
Does the system support three massage pumps?
No. It supports a circulation pump, one single-speed or two-speed main massage pump and either another single-speed pump or an air blower.
Is the Wi-Fi module included?
No. The system is ready for a compatible Wi-Fi module, which must be ordered separately.
Can the system use a three-phase supply?
Yes. The connected loads can be distributed between two or three phases. A qualified technician must configure the system according to its technical documentation.
Is 56611-06 a replacement for 56610-06?
It may be a related or updated version, but compatibility should not be determined solely from a similar part number. The complete label, board, software and wiring must be compared.
Are heater unions and gaskets included?
According to the technical specification, clamping rings and gaskets are supplied for the 2" heater connection. The exact contents of the individual package should be confirmed before ordering.
| Category: | BP units |
|---|---|
| Warranty: | 2 years |
| EAN: | 56611-06 |
| Brand: | Balboa Water Group |
| Heater output: | 3.0kW - 3.9kW |
| Model: | Balboa BP601G1 |
| Rozměry: | 300 x 500 mm (včetně topení) |
| Napětí: | 230V/ 50Hz |
