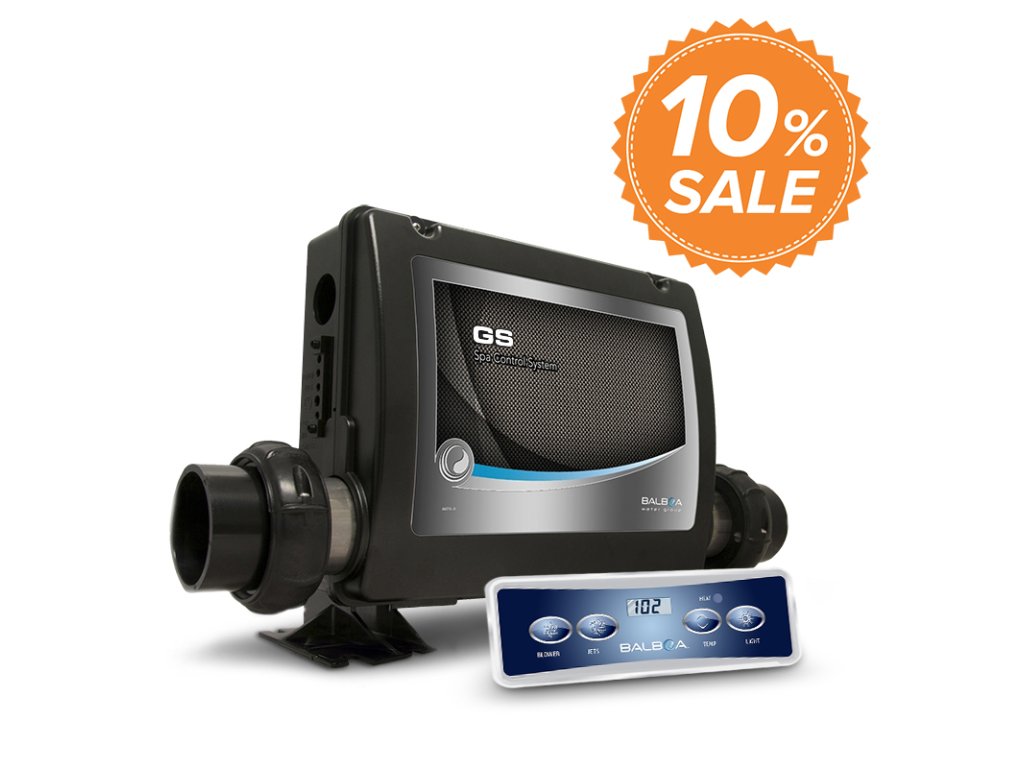

Balboa SET Control unit GS501Z 3.0kW + control panel VL401

Product detailed description

• Balboa Complete control set GS501Z

  • If bought as a set price lowers by 10 % compared to price when purchased single components separately.

  Control unit

  GS501Z

  Serie of control systems Global Series (GS) is designed to meet reliability, easy installation and smooth operation.

  • RoHS approved / Environment friendly
  • European safety approved
  • Multi level diagnostic function
  • Better installation and service

  Control systems of the company Balboa quarantee smooth and faultless whirpool operation and they can be installed to the most spas.

  Control systems GS, GL and BP are delivered with the latest technology M7, meaning there is no need of external temperature sensor in your spa, or of pressure or flow switches in order to detect water flow. This technology consists of two sensors M7, one on each end of the heater which enhances flow and water temperature detection in one step.

  Specification

  • Pump 1: one-speed or two-speed massage pump + circulatory pump if required.
  • Compressor: 1×
  • Heating: 1× 3kW
  • Ozonizer: Yes
  • Lighting: 1× 12V
  • Connection option TV/AV, radio

   Dimensions

  270 × 500 mm

  Control panel

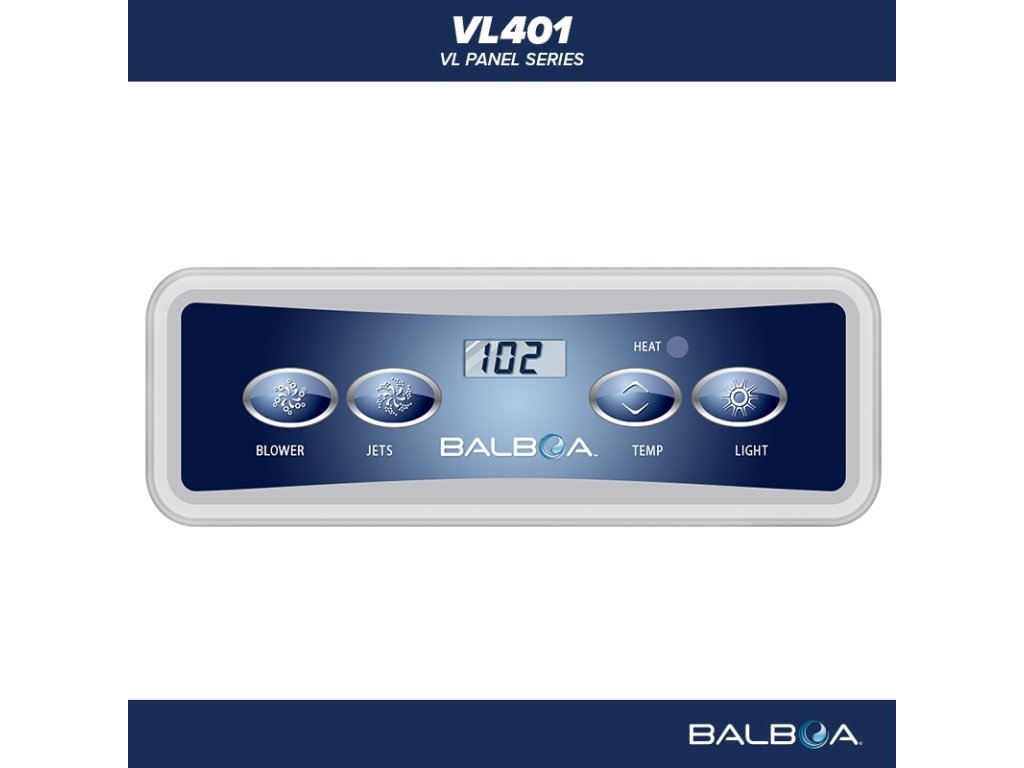

  Control panel Balboa VL401

  Serie VL includes a simple LCD display and easily used buttons.

  Specification

  • Connection type: RJ45 plug
  • Buttons: Blower, Jets, Temp, Light

  Dimension

  160 × 56 mm

  Important information

  These control panels must be installed by a qualified worker or seller who is trained and qualified appropriately!

  Files to download

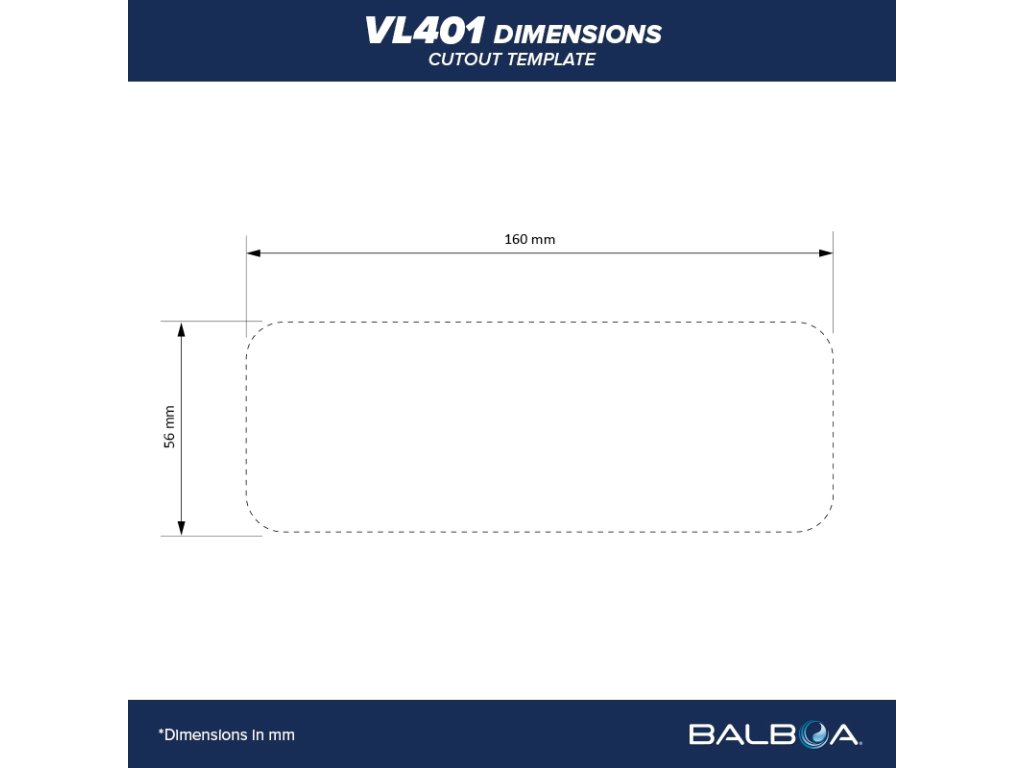

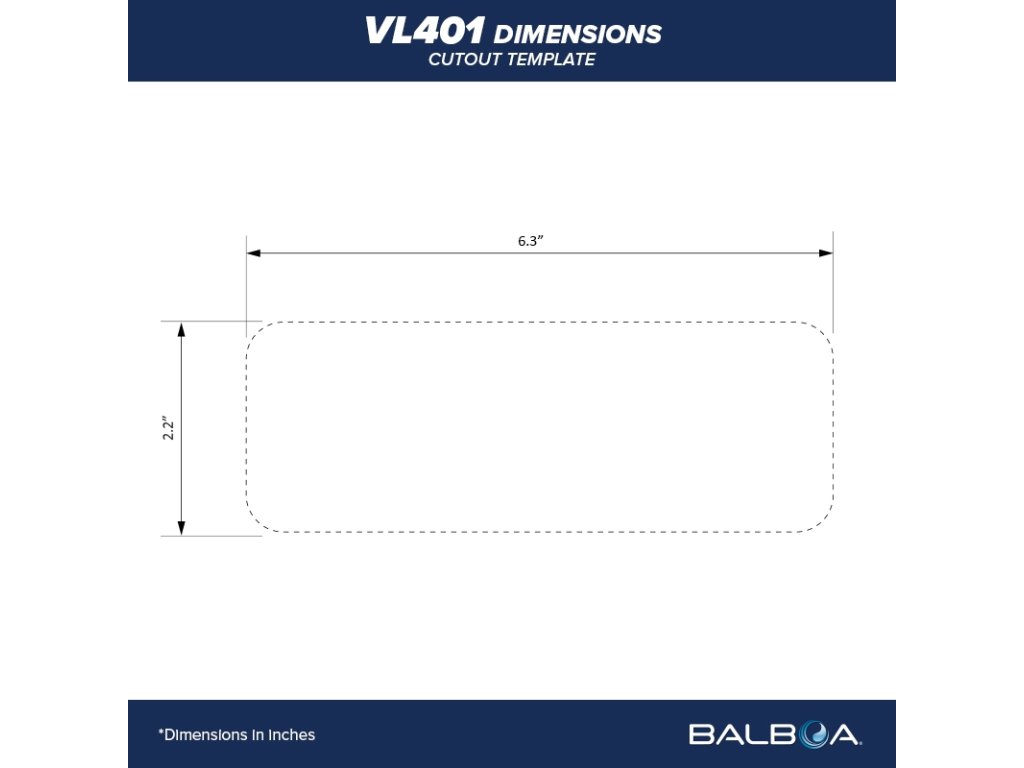

  • VL401 – Dimensions (Cutout)
  • VL401 – Dimensions (Overlay)
