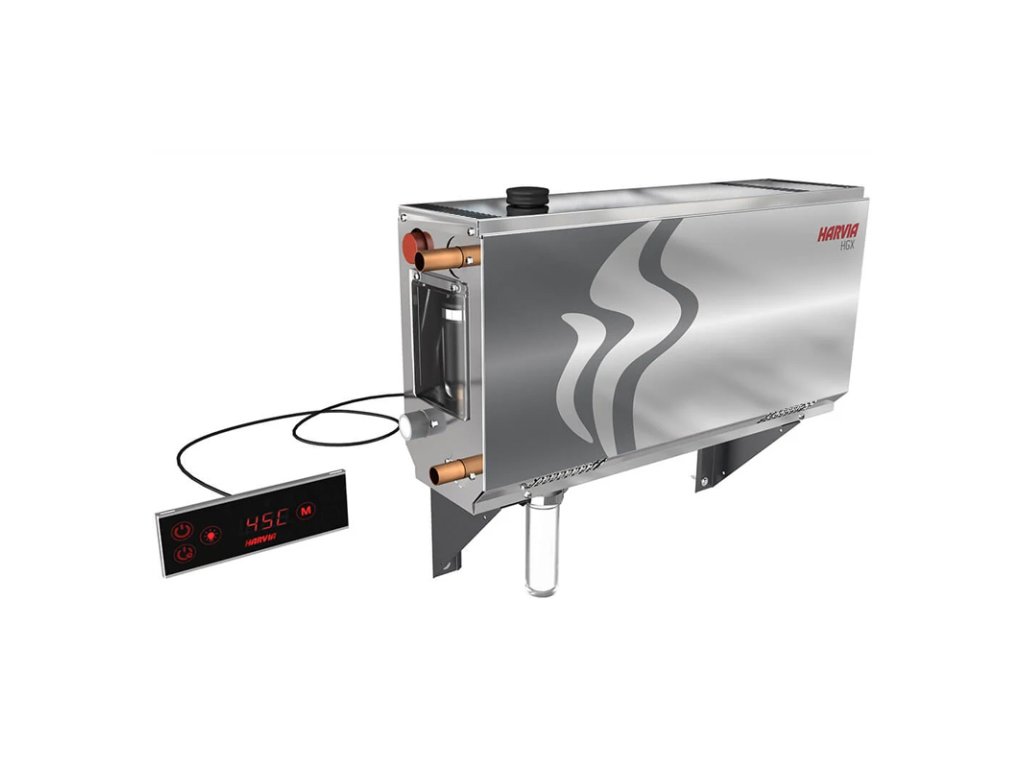

Harvia steam generator - Steam generator for steam saunas 10.8kW - HGX11

Harvia presents a highly intelligent steam generator from the HGX series. The powerful steam generator HGX11 has compact dimensions with minimal installation space requirements. The steam generator is equipped with a luxurious touch control panel, which can be used to set the required amount of steam, atmospheric lighting or aroma essence dosage.

The HGX11 model is intended for steam saunas - approx. 10-21 m³.

•  The package includes: Steam nozzle, control panel with cable, pressure relief valve, manual drain valve.

Specifications

• Power consumption: 10.8 kW
• Voltage: 400V 3N
• Power cable: 5 x 2.5
• Fuse: 3 x 16 A
• Room volume: 10-21 m3
• Dimensions (l, w, h): 530x150x230 mm
• Efficiency: 14.6 kg/h

Important

• Read the manual before installing and operating the product.
• This device must be connected to an insulating rod.
• This device must be installed by a competent person.
• Disconnect the power source before handling the electrical contacts.
• Confirm the correct voltage for your 1 or 3 phase steam generator.

Steam bath safety precautions

• The elderly, pregnant women, or those suffering from heart disease, high blood pressure, diabetes or any other medical condition should seek professional advice before using a steam bath.
• Smoking is not allowed in the steam room.
• Avoid entering a steam room after strenuous exercise.
• Do not use the steam room if you are under the influence of alcohol.
• Leave the steam room immediately if you feel sleepy, nauseous or have other difficulties.
• Make sure the steam room is well ventilated.
• The product is not recommended for use by persons under the age of 16.
• For commercial purposes, the operator should place these safety measures in a visible location.
