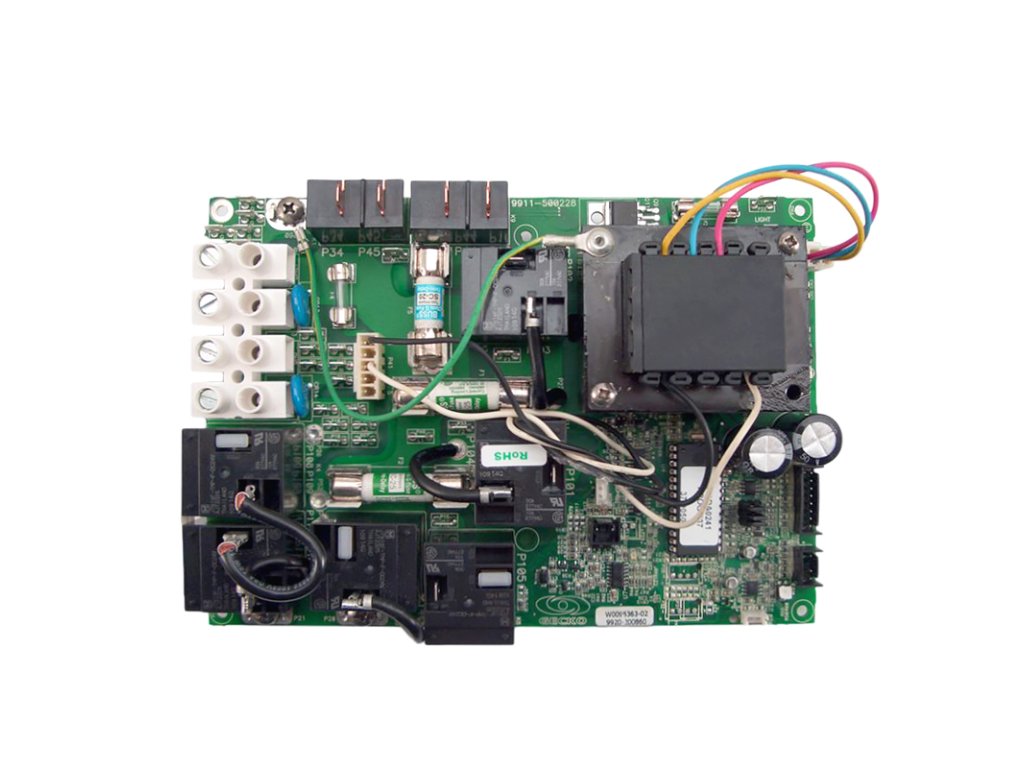

HydroQuip CS-6200/9200 ECO-2, R6 Base board (PCB)

This base board is the original HydroQuip spare for control units HydroQuip CS-4200, CS-6200 and CS-9200.

Product type: PCB or Circuit Board

Specification:

• Circulation pump: yes (optional)
• Pump 1: one-speed or two-speed massage pump
• Pump 2: one-speed massage pump, if the whirpool is without a compressor
• Compressor: yes if a pump 2 is not supplied
• Heating: 1?
• Ozonizer: 1?
• Lighting: 12V
• Thermal sensor: Probe
• Pressure switch

Compatible with control panels:

This base board is compatible with control panels HydroQuip Eco-2, Eco-6.

Installation shall be completed by a qualified person. Faulty installation might cause a board damage followed by warranty expiry.
