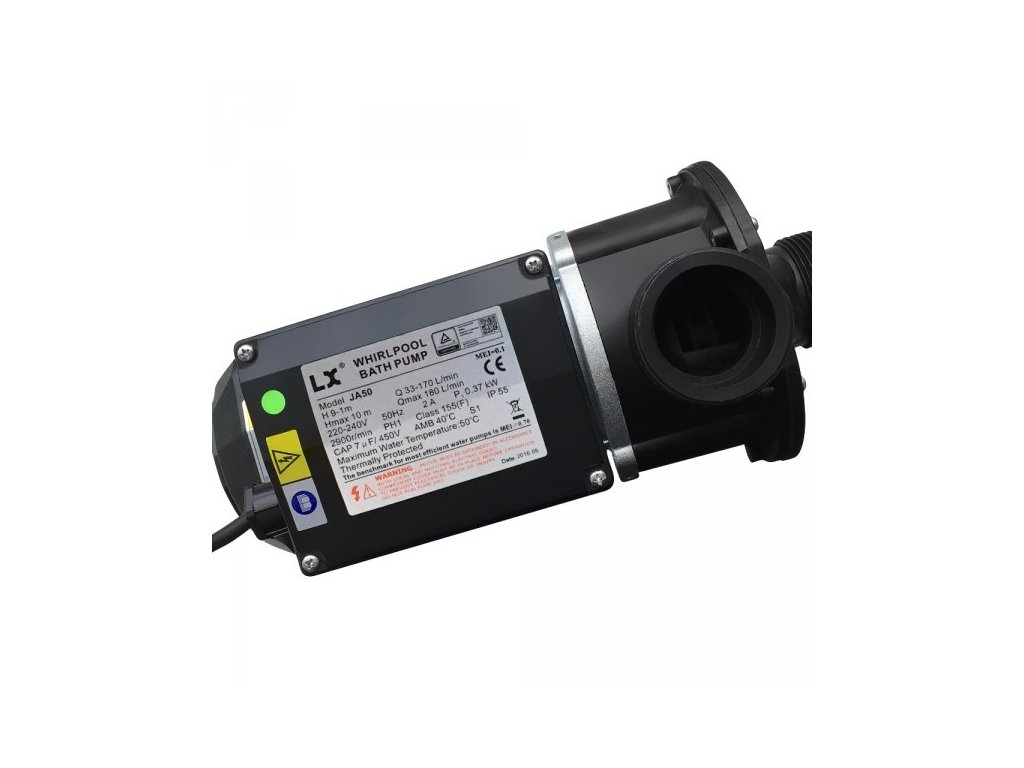

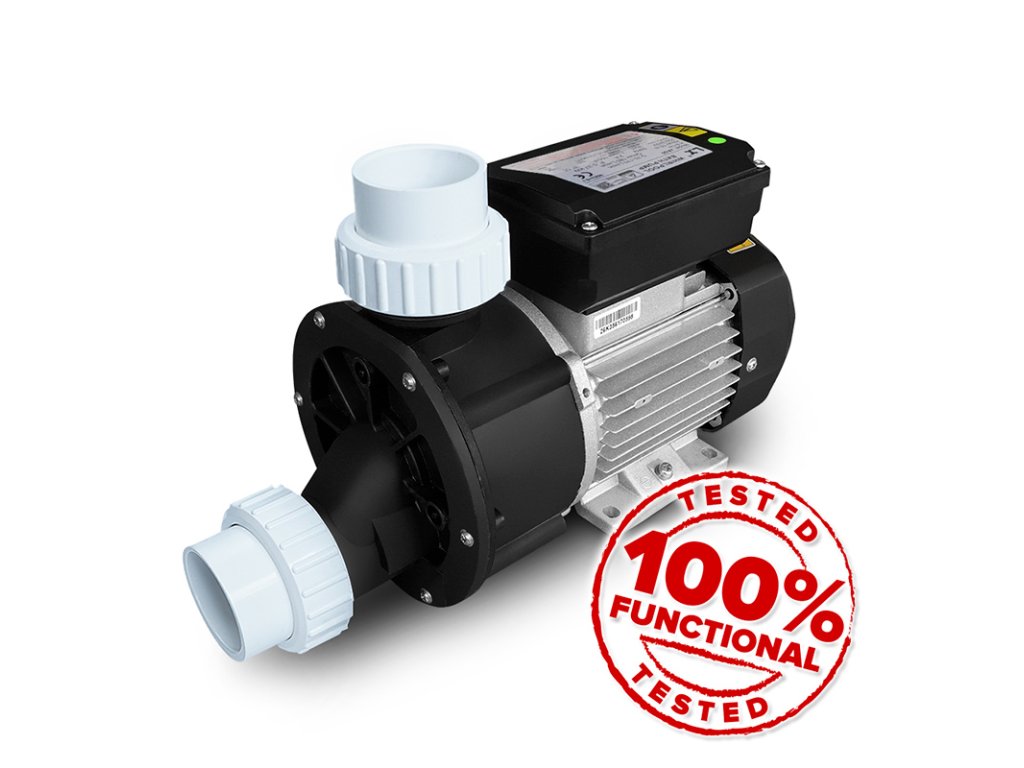

LX circulatory pump for whirlpools JA50 0.37KW - refurbished - CCLXJA50-REP
Code: CCLXJA50-REPRelated products
Product detailed description
Information
- Output / Input – Screw of 60 mm.
- Flange – inner diameter for sealing 48 mm.
- Series LX JA is one of the most advanced hydromassage pumps on the market and it is recommended for spas, whirlpools and tubs.
- It has a lusty aluminium body and basement, high quality plastic spare parts are sealed due to water-resistance.
- Engine cooled by air is very quiet even during its ceaseless operation. /li>
- Therefore it is widely used for spa pools filtration.
- It may be used even for warm water of max temperature 50 C.
- LX JA is also popular in fishing, can handle even salty water or any other slightly aggresive liquids.
- A full replacement for the Hanscraft TUDOR 370 pump

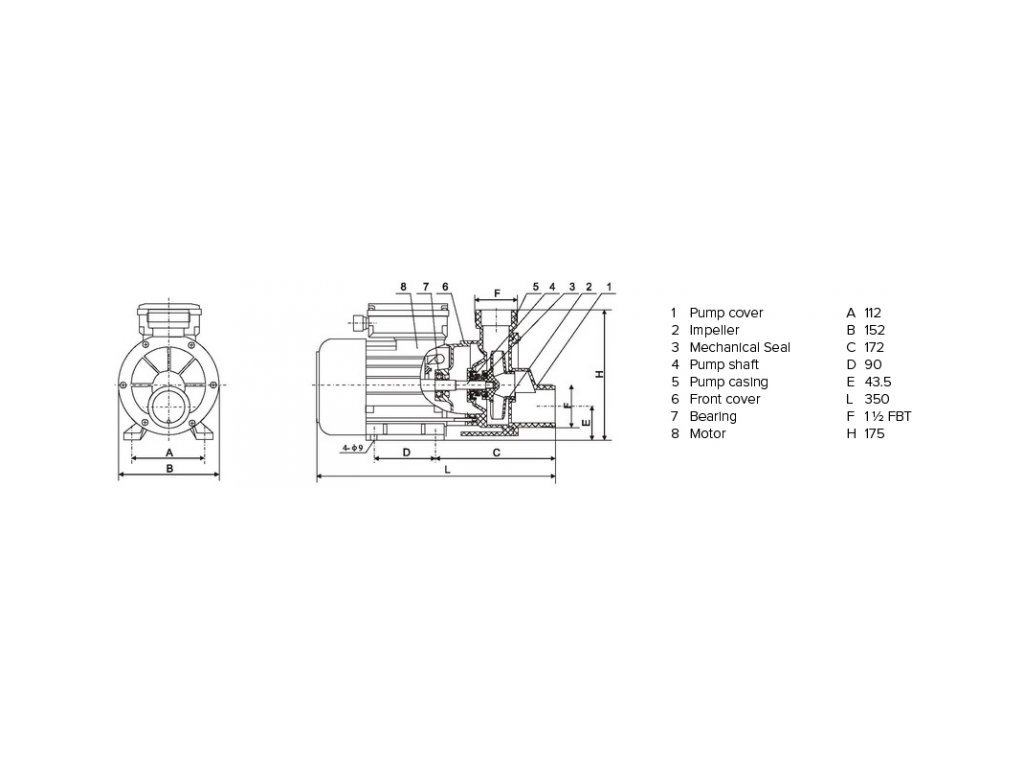

| Model |
Packing size (mm) |
A |
B |
C |
D |
E |
L | F | H |
| JA 50 | 347×175×225 | 100 | 152 | 164 | 80 | 33 | 317 | Screw of 60 mm | 153 |
Electrical connection
Delivered with a cable AMP PLUG
Compatible with
- Wellis hot tubs
Attention is sold without flanges!
It is a refurbished piece. The product warranty is 6 months.
Additional parameters
| Category: | Cirkulační čerpadla LX |
|---|---|
| Weight: | 5.4 kg |
| Brand: | LX |
| Type of pump: | Circulation |
| Output: | Less than 0.5kW |
| Hose inlet: | 48 - 59 mm |
| Hose outlet: | 48 - 59 mm |
| Model: | LX JA 50 |
| Maximální výtlačná výška: | 9 m |
| Izolační třída: | F |
| Krytí: | IPX5 |
| Maximální pracovní tlak: | 3,0 bar |
| Maximální průtok: | 180 l/min |
| Napětí: | 220-240V/50Hz |
| Teplota kapaliny: | Max 50 °C , okolní teplota max: 50 °C |
