LX circulatory pump with heater EH75 0,55kW + 3,0kW - CCLXEH75-3.0
Code: CCLXEH75-3.0Related products
Product detailed description
Information

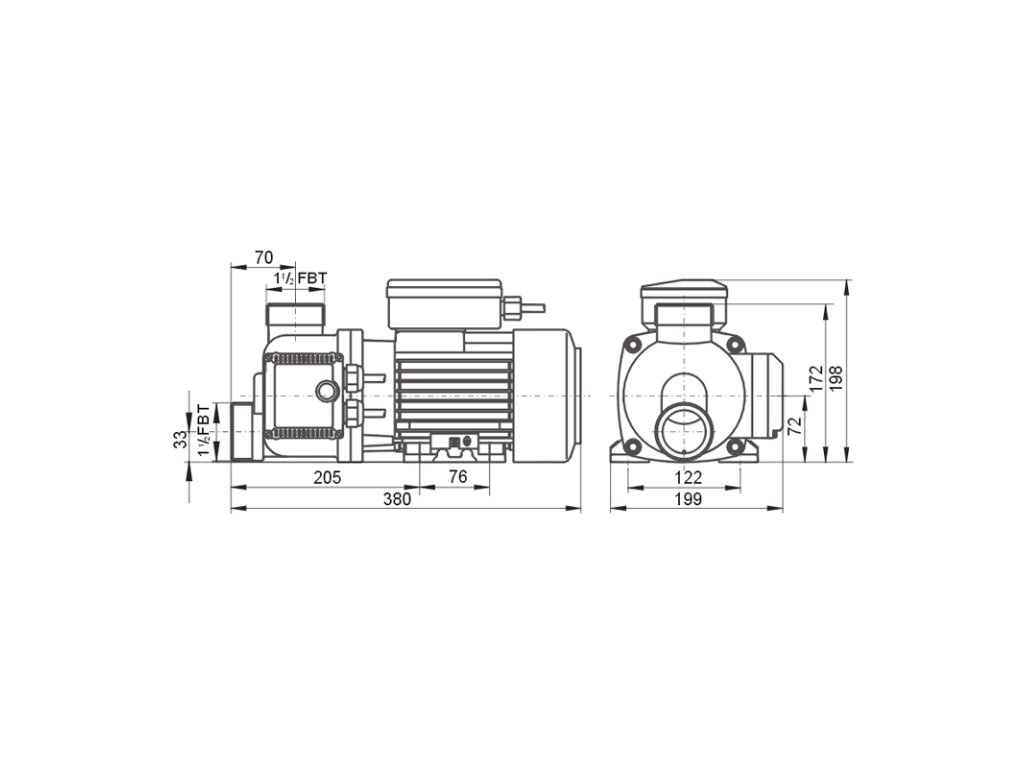

- Output / Input – Screw of 60 mm.
- Flange – inner diameter for sealing 48 mm.

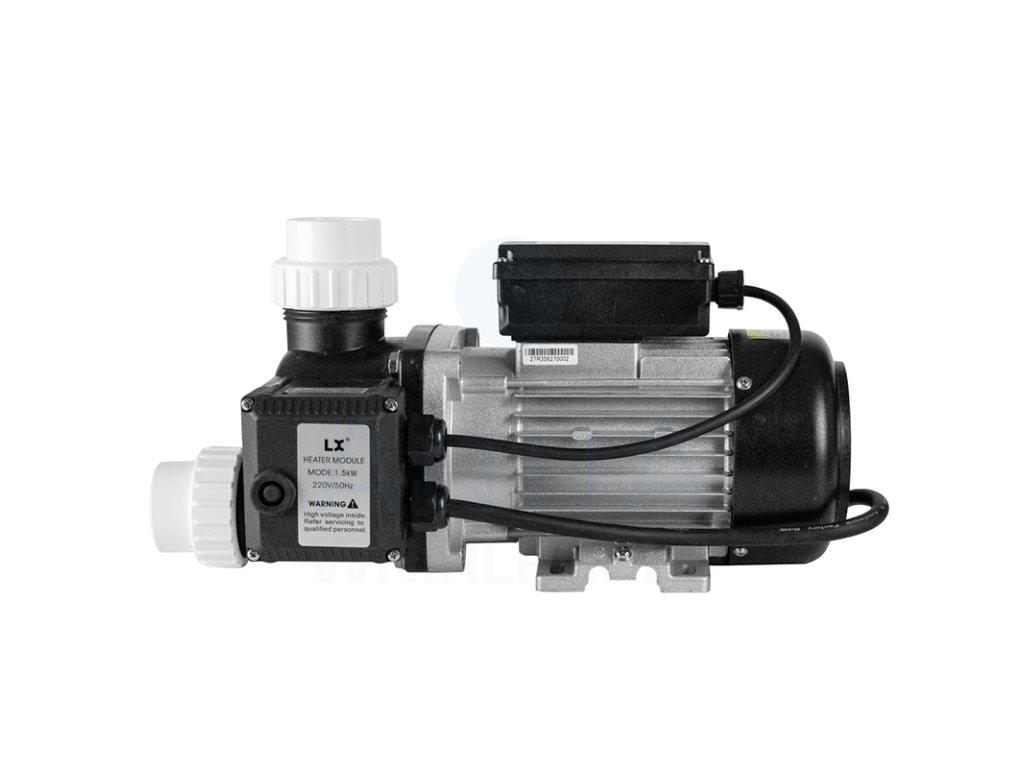

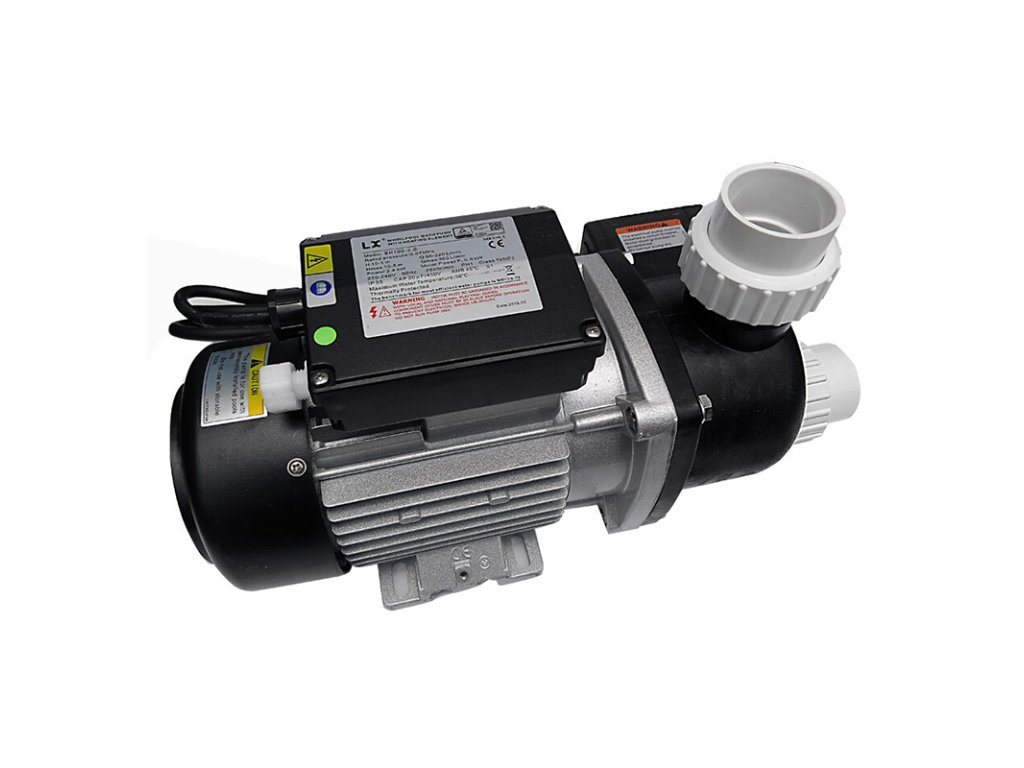

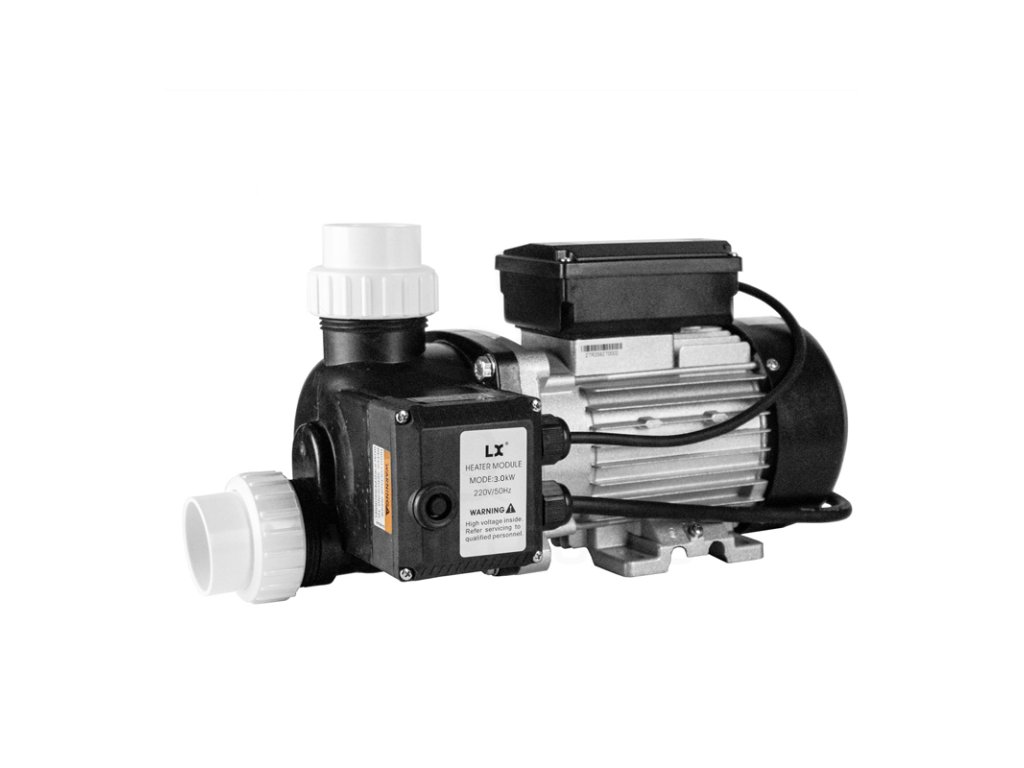

- Pump LX EH75 is a combination of pump 0,55kW and a heater 3,0kW.
- It has a strong aluminium body and basement, high quality plastic spare parts are sealed due to water-resistance.
- Engine cooled by air is very quiet even during its ceaseless operation.
Included in the package
- 2× flange pump union 1,5"
Electrical connection
Delivered with a cable AMP PLUG
Additional parameters
| Category: | Cirkulační čerpadla LX |
|---|---|
| Weight: | 8.5 kg |
| Brand: | LX |
| Type of pump: | Circulation |
| Pump speed: | One-speed |
| Output: | 0,5kW - 0,99kW |
| Hose inlet: | 48 - 59 mm |
| Hose outlet: | 48 - 59 mm |
| Model: | LX EH75 |
| Maximální průtok: | 210 l/min |
| Kód produktu: | 01.05.01.0021 |
| Izolační třída: | F |
| Krytí: | IPX5 |
| Maximální pracovní tlak: | 3,0 bar |
| Maximální výtlačná výška: | 8 m |
| Teplota kapaliny: | Max 50 °C , okolní teplota max: 40 °C |
