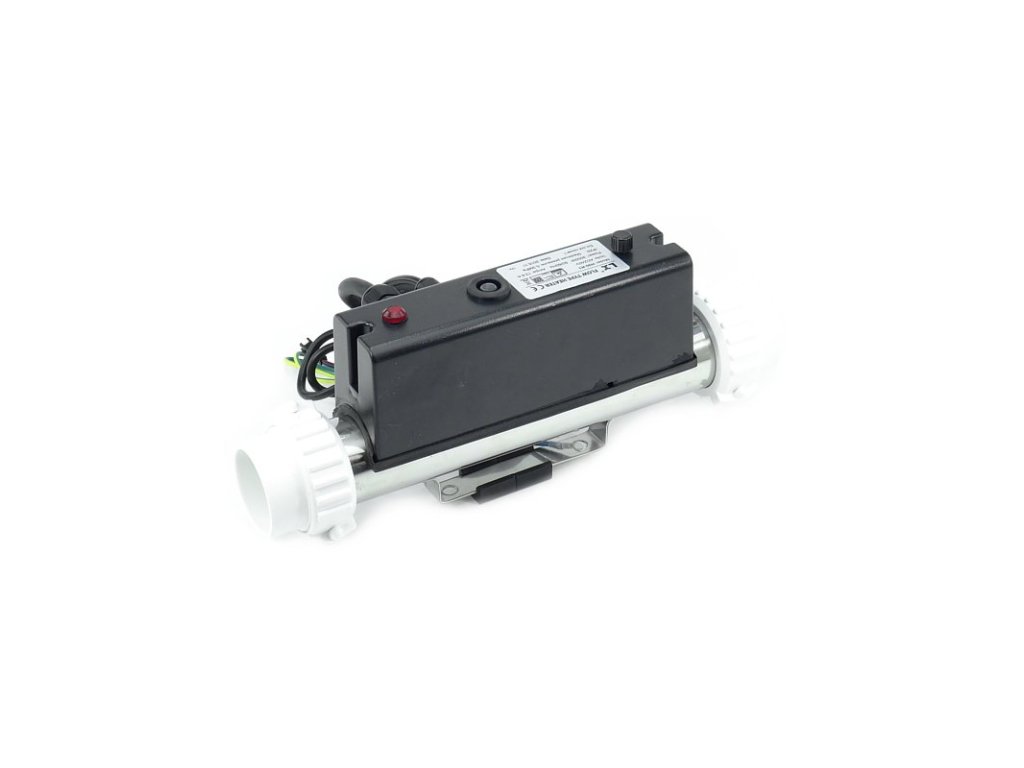

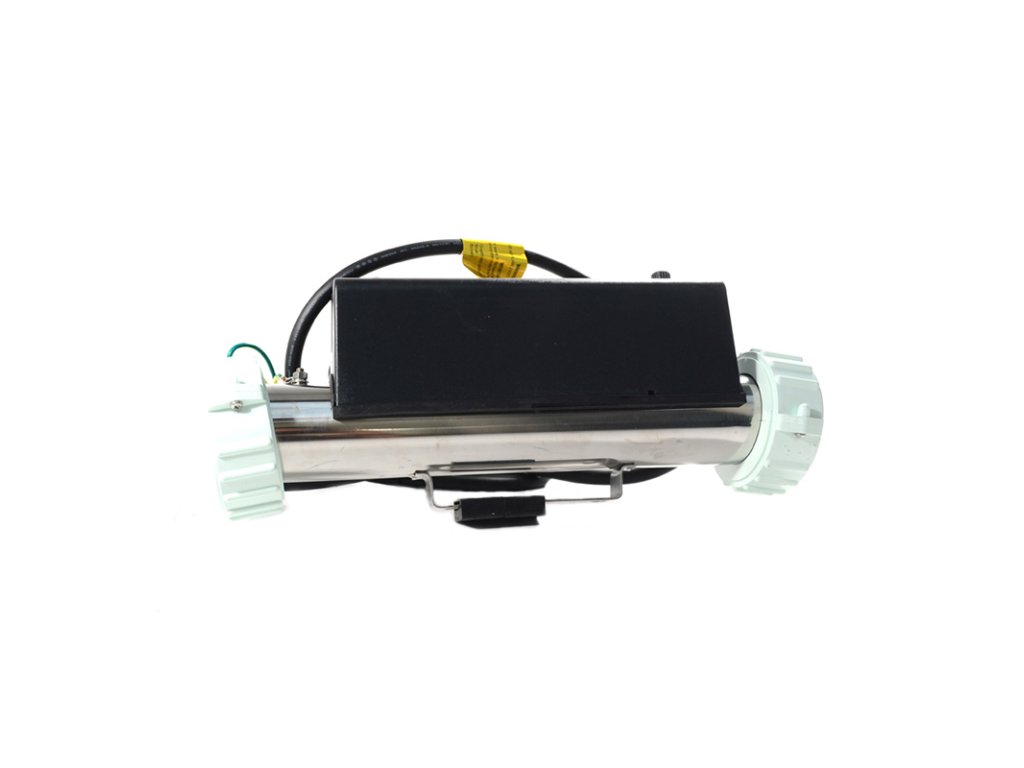

LX Heating for whirlpools H30-R1, 3kW - connection 48,5 mm
Code: LX-H30R1Product detailed description
Serie of heating bodies H is designed for hydromassage tubs with pipes for hydromassage. After filling a tub with hot water and turning on water pump the heating body starts automatic heating of water to approximate temperature of 39°C, which is maintained. This environment is ideal for hydromassage.
- Connection diameter is 48,5 mm.
- Stainless steel case
- Automatic and manual regulator of temperature.
- Inner pressure switch, dry protection.
- Protective switch of flow
- Temperature setting switch
Elektric heating body for spa and small swimming pools are equipped with regular flow with minimum loss of pressure. Compact design allows installation even in small rooms. Heating body is made from plastic materials with heating elements Incoloy 825, highly alloyed steel of excellent features against influence of aggresive water.
Additional parameters
| Category: | Topení LX |
|---|---|
| Weight: | 3 kg |
| Brand: | LX |
| Heater output: | 3.0kW - 3.9kW |
| Model: | LX H30-R1 |
| Příkon: | 3.0 kW |

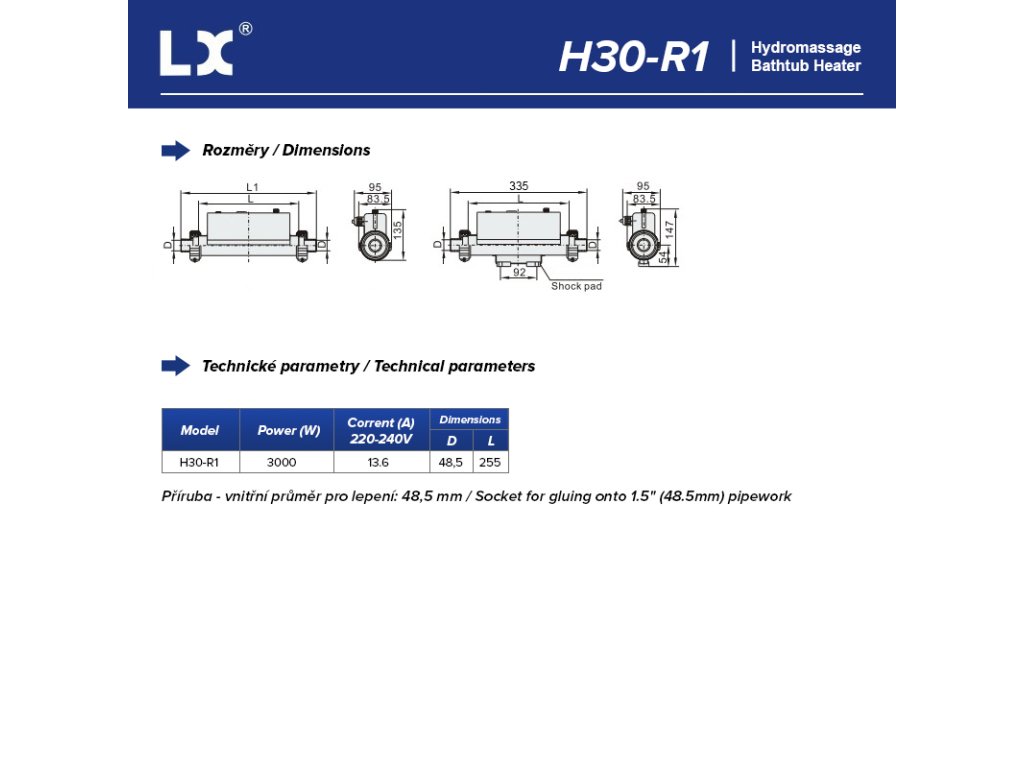

| Rozměry: | 335 x 147 x 95 mm |
| Krytí: | IPX5 |
| Maximální pracovní tlak: | 1 bar |
| Napětí: | 230v, 50Hz, 13.6A |
| Připojení: | 48,5 mm |
