LX heating for whirlpools with thermoregulation H30-RS1, 3kW - connection 48 mm
Code: LX-H30-RS1Product detailed description

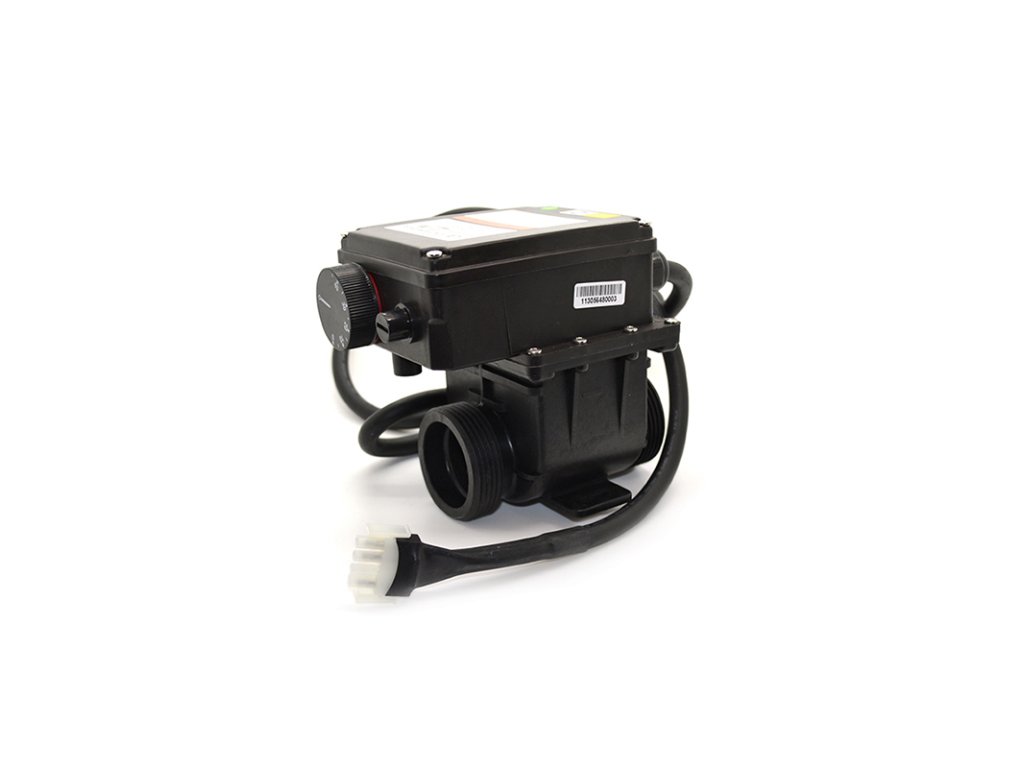

Electric heating body for spas and small swimming pools are equipped with regular flow with minimum loss of pressure. Compact design allows installation even in small rooms. Heating body is made from plastic materials with heating elements Incoloy 825, highly alloyed steel of excellent features against influence of aggresive water.
Heating body is delivered with adjustable thermostat 0–45 ?C, switch of overheat check 60 ?C and flow switch. Water temperature check is possible within ?2 ?C of set up temperatures.
Sensor of compatability: Sensor is inbuilt directly in the heater, it is controlled with thermostat on module side.
Maximum water volume: 700–1200 litres
Material: Plast
Certification: CE
Additional parameters
| Category: | Heater LX |
|---|---|
| Weight: | 3 kg |
| Brand: | LX |
| Heater output: | 3.0kW - 3.9kW |
| Model: | LX H30-RS1 |
| Příkon: | 3.0 kW |

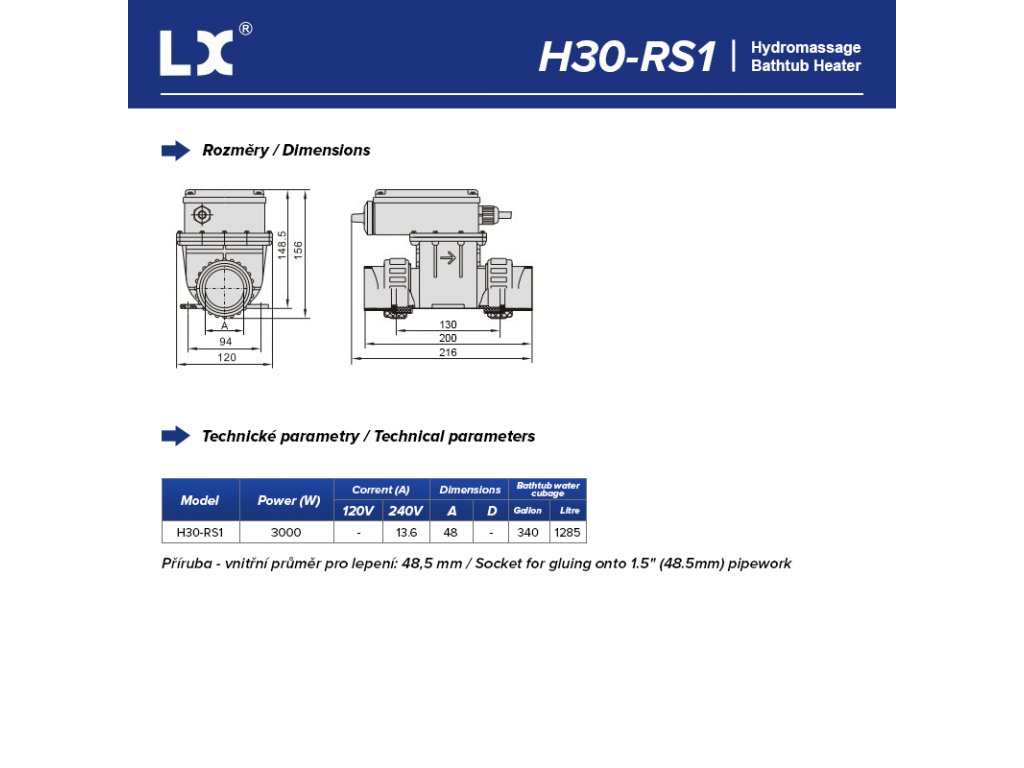

| Rozměry: | 216 x 156 x 120 mm |
| Krytí: | IPX5 |
| Maximální pracovní tlak: | 1 bar |
| Napětí: | 230v, 50Hz, 13.6A |
| Připojení: | 48,5 mm |
