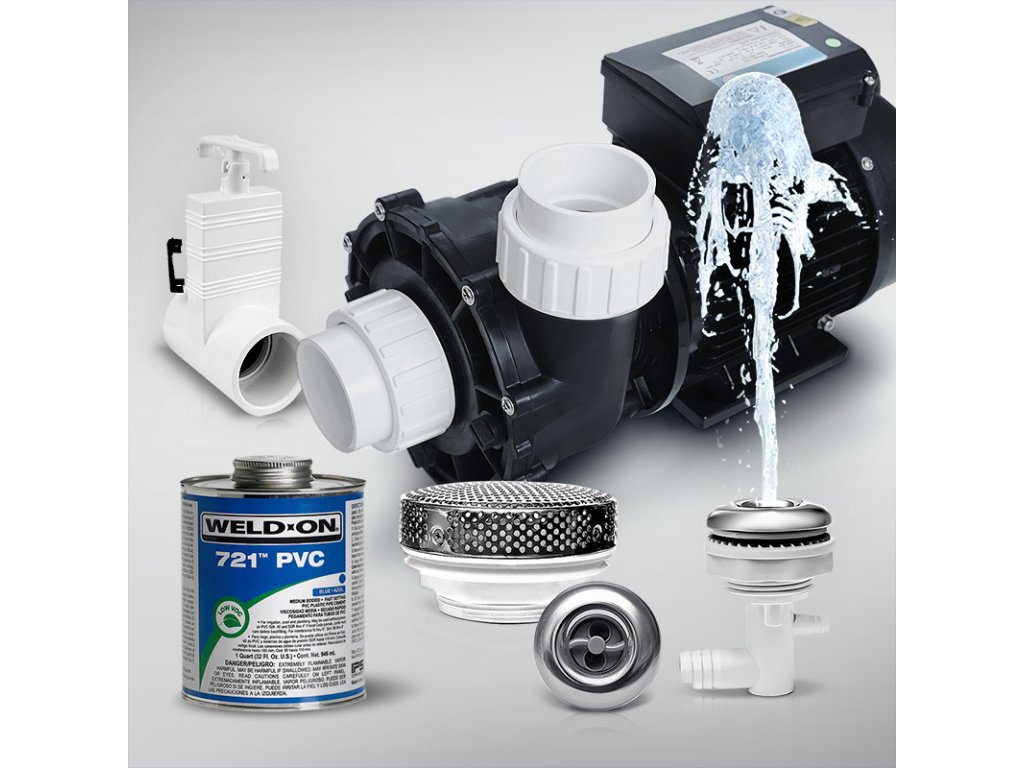

Massage system WP200

Product detailed description

Masage system

1. LX water pump for whirpools WP200 1.5KW (2-Speed)

   • Connection diameter is 60 mm.

   • Designed for high output and excellent delivery value.

   • Air cooled engine resistant to humidity and low temperatures.

   • Condenser saving energy.

   • Overheat control for long lifetime of the engine.

   • Flexibile installation for easy manipulation with pipes.

   • Ideal for spa systems and pools even for ceaseless operation.

   • LX WP200 2,0HP (2-Speed) / ACM0594

   • 2× flange

   • 4× silentblok



2. Rising Dragon 2.5"' (62 mm) Directional – Smooth Stainless Steel 6×
   Directional massage stainless jet of the serie Quantum by the brand Rising Dragon.

   • Jet diameter: 2.5" (62 mm)

   • Brand: Rising Dragon

   • Serie: Quantum Series

   • Type: Directional

   • Material: Sta­inless



3. Rising Dragon 2.5" (62 mm) Face Spinning – Smooth Stainless Steel 4×
   Spinning massage stainless jet of the serie Quantum by the brand Rising Dragon.

   • Jet diameter: 2.5" (62 mm)

   • Brand: Rising Dragon

   • Serie: Quantum Series

   • Type: Spinning

   • Material: Stainless



4. Rising Dragon 2.5" / 3" Jet BodyQuantum (Body for nozzle) 10×


5. LX Hose PVC – semi-flexible – diameter 66 mm 2×
   Outer diameter: 60 mm



6. LX Hose PVC – semi-flexible – diameter 25 mm 10×
   Hose for massage and circulation circuit and converter Microsilk.

   • Inner diameter: 20 mm

   • Outer diameter: 25 mm



7. Water Divertor – 6 × 21,5 mm
   Water divertor for spas and whirlpools. It is used for water access to jets from a water pump.

   1. Exit: 6 x Ø 21,5 mm

   2. Entry for inlet pipe: 1× Ø 60 mm (inner), 1× closed



8. Slide valve with hole and fuse big, diameter 60/60 mm 2×
   Slide valve made from PVC with inner diameter 60 mm on both sides. Fitting by sealing.



9. Water Divertor – 4 × 21,5 mm
   Water divertor for spas and whirlpools. It is used for water access to jets from a water pump.

   Exit: 4 x Ø 21,5 mm
   Entry for inlet pipe: 1× Ø 60 mm (inner), 1× closed.



10. STAINLESS Suction basket to SPA for whirlpool – 122 mm (Wider version)
    Suction basket for whirlpools of diameter 122 mm. For the suction basket it is necessary to purchase a suction basket reduction.



11. Plastic reducer for suction basket diameter from 73 (outer) to 60 (inner) mm
    Reducer for suction basket. It has outer diameter 73 mm on one side and on the other side there is inner diameter 60 mm. Before pasting it is neccesary to clean properly all ends. Apply thing layer of glue and use pressure to hold the parts together. Allow 5 minutes without any action. Then proceed with other pasting.

    Inlets: Pasting
    Inlets diameter: 73 mm (outer), 60 mm (inner)



12. Glue Weld-On 1 kg
    Premium highly resistant glue for the whirlpools, pools, watering systems and other plumbing piping.



    Glue Weld-On® 721 ™ is special quick-drying glue of blue colour with strong fixity. For glueing solid PVC piping SCH 40 up to diameter 160 mm and SCH 80 of diameter 110 mm. Suitable to be used as one-component glue without additives for glueing PVC piping and SDR tubes with pressure water flow in pools, whirlpools and watering systems (golf course, gardens and agriculture areas).

    Glue is ideal to be used with pressure systems for drinking water, watering systems and industrial piping. It is environmental friendly, safe in contact with drinking water, with low emissions and low odour, meeting the stricktest regulations.

The pump can be replaced for any other, according to the client's request.

WARNING: the price for replacing the pump may differ and depends on the price for the selected pump
