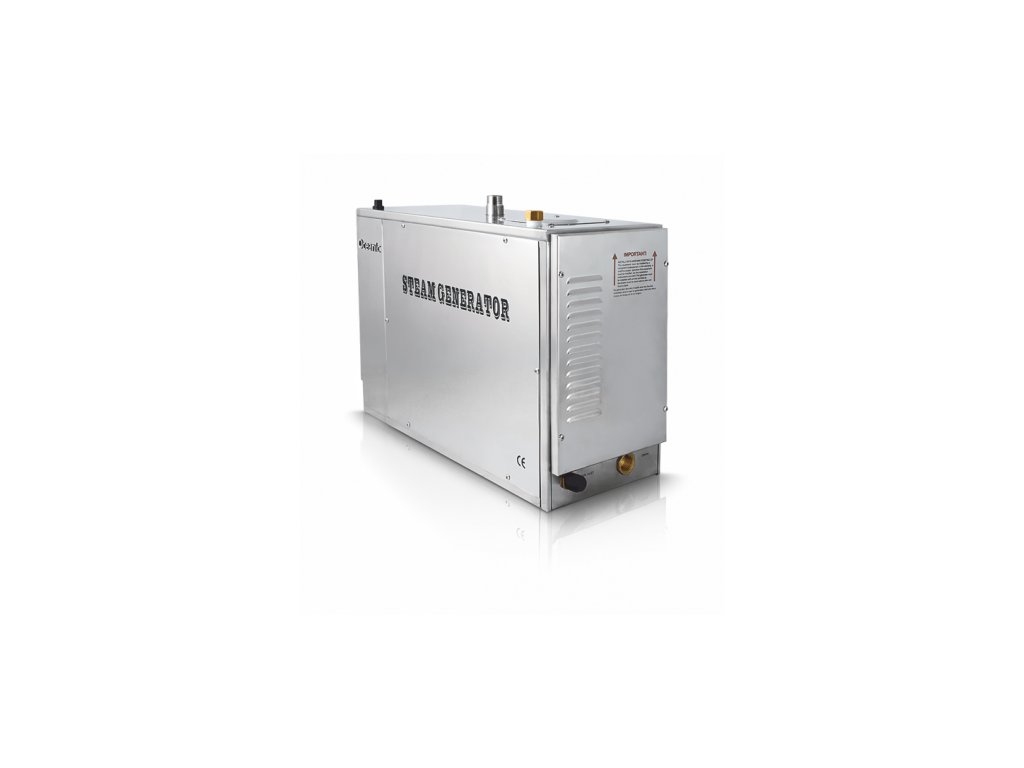

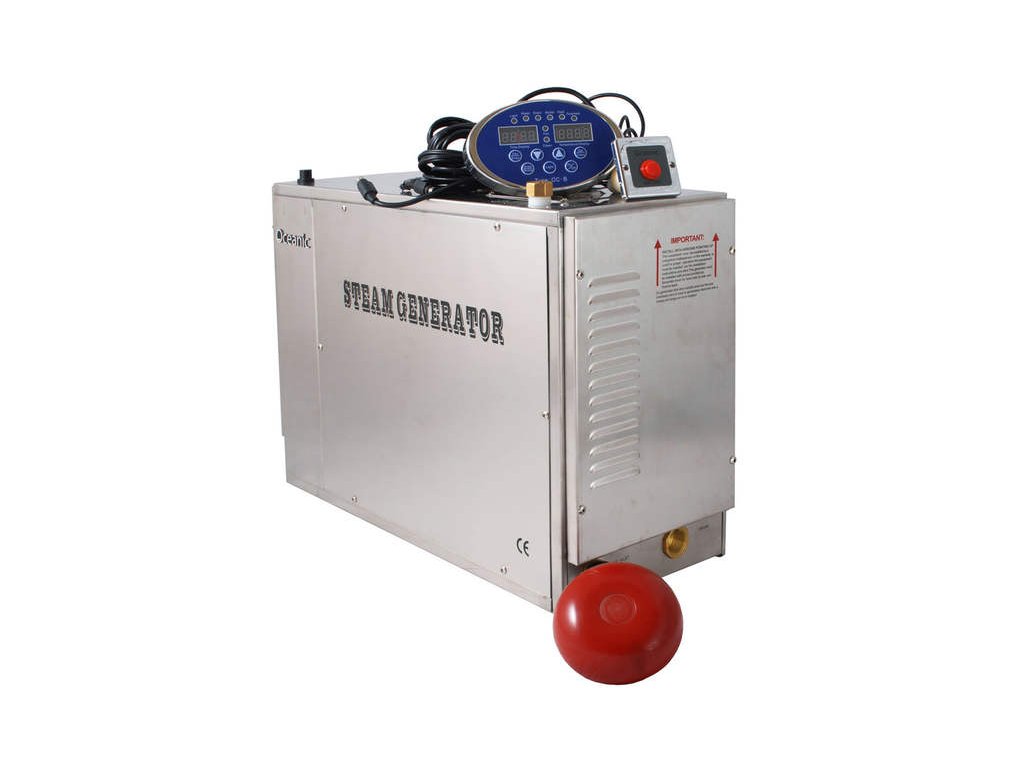

Oceanic Steam generator – Steam generator for saunas 12kW – OC120C

Product detailed description

Information

• Model: OC-120C
• The top serie of super powerful steam generator for extra demanding ceaseless operation.
• These hardy models in luxurious stainless case have unique steaming abilities unique nonstick technology of heating spirals.
• Thanks to connection of the latest technology and highly intelligent control system is quaranteed smooth and long-run operation of these models.
• Each model of this serie is equipped with control electronics with autonomous control system and independent diagnosis of continuous operation.
• The most advanced system of automatic control allows ceseless operation of the generator in optimized operation according to set-up modes and temperature.
• Each model of this luxurious serie is equipped with three intelligent independent heating spirals which can be heated separately if needed and therefore effeciently work with output and speed of heating.
• Thanks to this latest technology of operation a heating effect is optimized in the best possible way and efficiency of energy saving. – Certainly, you can expect ceaseless deliming cycle which automatically decalcify inside technology by just pressing the button.

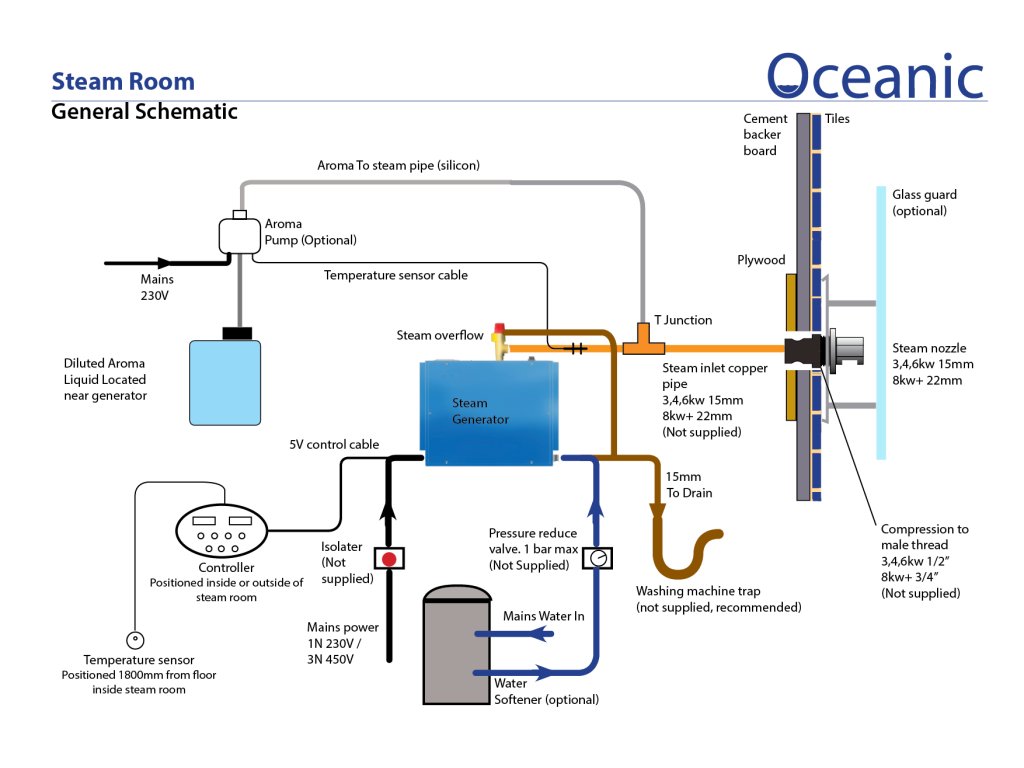

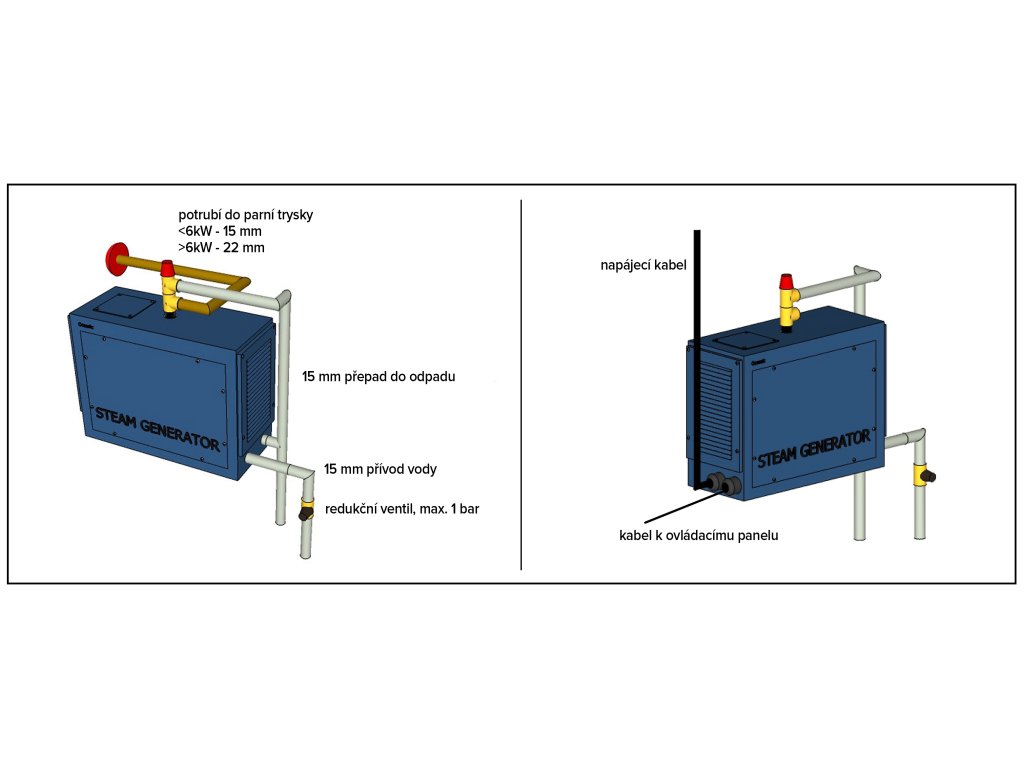

 Guide to building a steam room – PDF

Specification

• Voltage: 230/400 V
• Input: 12 kW
• Phase N~: 1/3
• Room capacity: 6 – 9 m3
• Dimensions (l, w, h): 530×210×370 mm

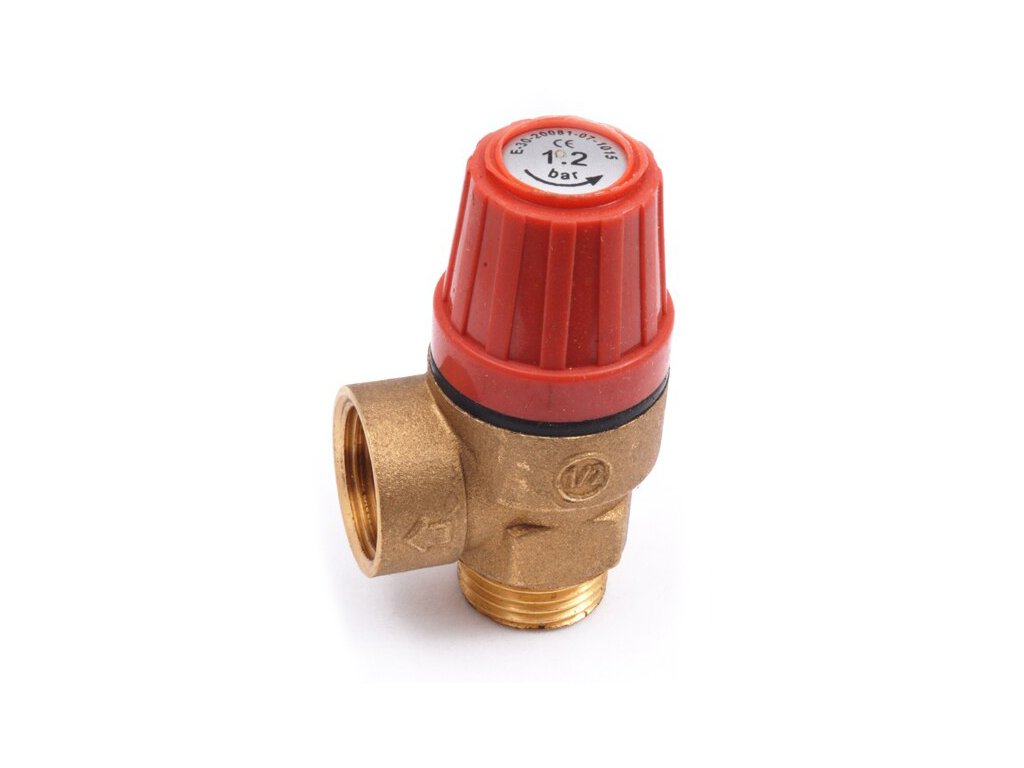

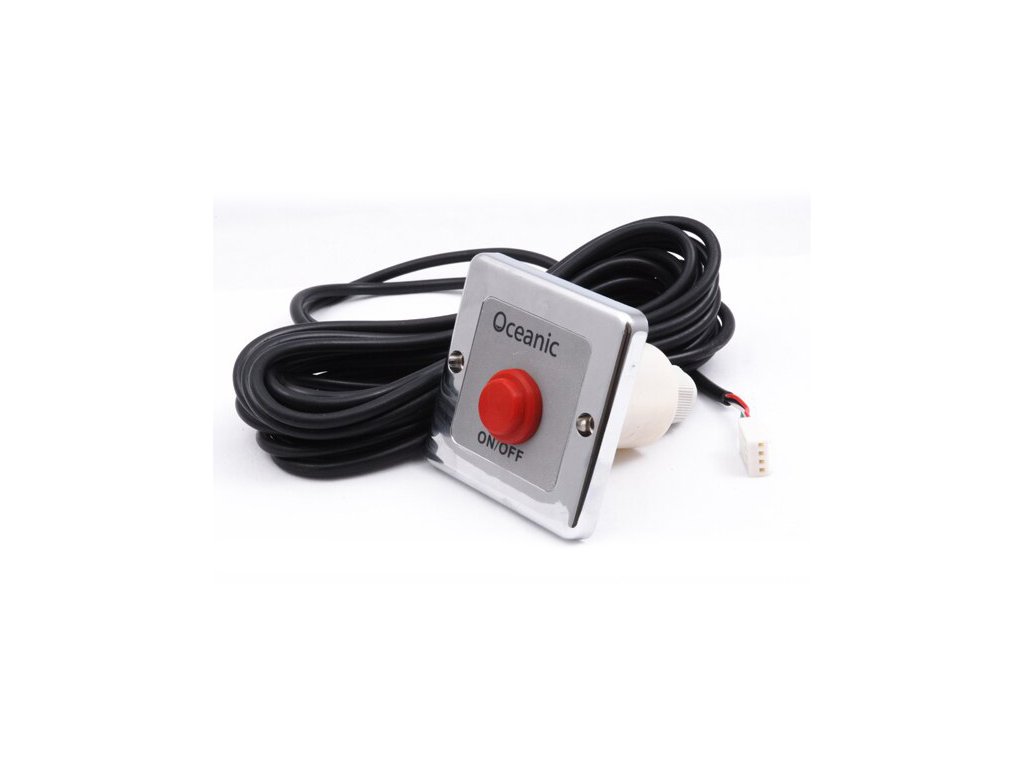

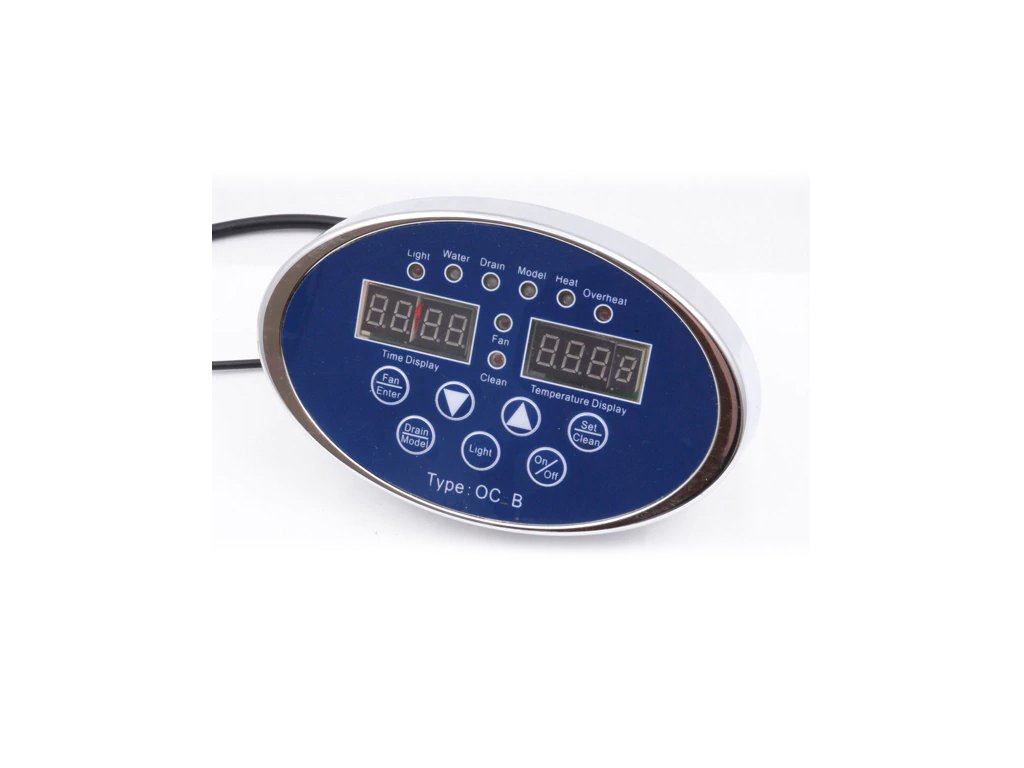

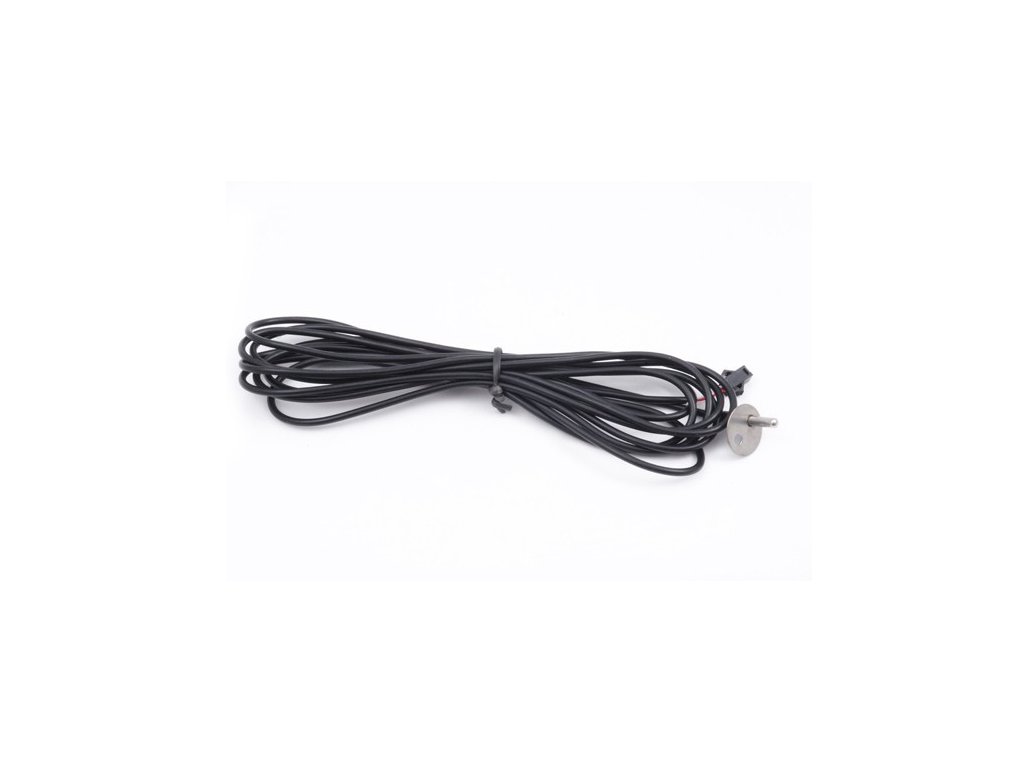

• Package contains: A steam jet, a control panel with a cabel, a safety valve, a thermal sensor, automatic system of decalcification, economical button ECO.

Important

• Read the manual before installation and product usage.
• This device must be connected to an insulating pole.
• This equipment must be installed by a competent person.
• Disconnect from power source before manipulation with electrical contacts.
• Confirm the correct voltage for your steam generator 1 or 3 phases.

Safety precautions for a steam spa

• Elder people, pregnant women or people with heart conditions, high blood pressure, diabetes or any other health conditions shall consult with an expert before steam spa use.
• In a steam room there is a smoking ban.
• Avoid entering the steam room after work-out.
• Do not use the steam room if under alcohol influence.
• Exit the steam room immediately if you feel drowsy, sick or any other discomfort.
• Ensure the steam room to be properly ventilated.
• It is not recommended that this product is used by people younger 16 years.
• If for commercial use the operator should place these safety precautions visibly to inform users.

SPA Components has completed full training of Oceanic steam generators and we have all spare parts available for service. Therefore, we provide a complete post-warranty service on site at the customer throughout the country. You can also send the steam generators to our branch or we can organize the transport ourself.
