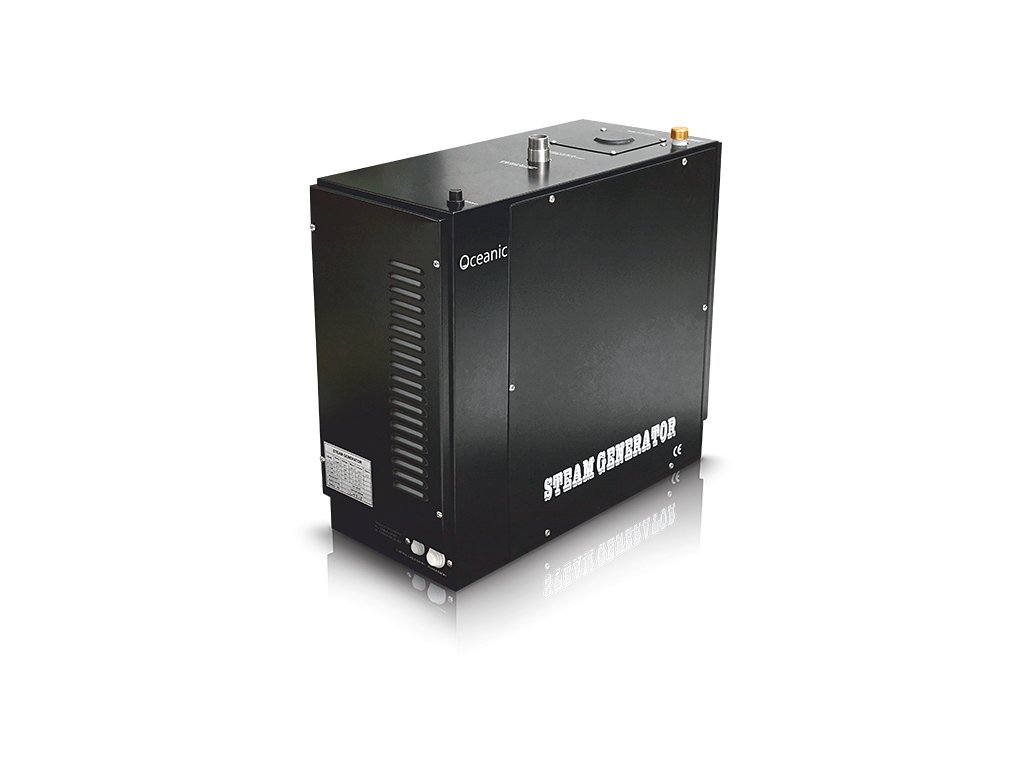

Oceanic Steam generator – Steam generator for saunas 9kW – OC90B

Product detailed description

Information

• Model: OC-90B
• Oceanic introduces highly intelligent steam generator of the top serie OC-B.
• All models of this top serie are equipped with automatic mode of scale removal.

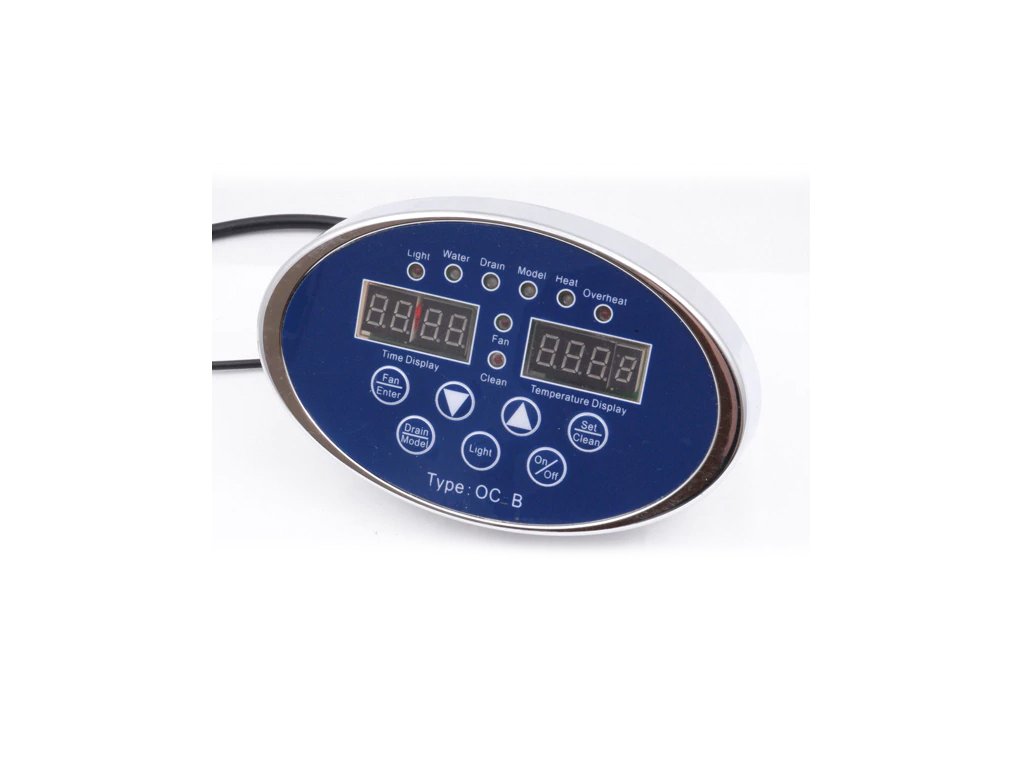

• Top quality steam generator OC-B is equipped with an intelligent digital regulator for control of automated steaming.
• System allows time-setting in intervals between 15 and 240 min, or ceaseless mode- non-stop operation without any timing.
• Temperature setting of a steamer is displayed in the following figures: 30 to 60 degrees Celsius and Fahrenheit, or it is possible setting for home or public operation.
• Generator is also equipped with sequence system of heating which allows even extensive steaming.
• For advanced setting it is possible to use a digital signal of control mode with LED diagnostic.
• Other features are: overheat protection, dry water boiling in a vaporizer.

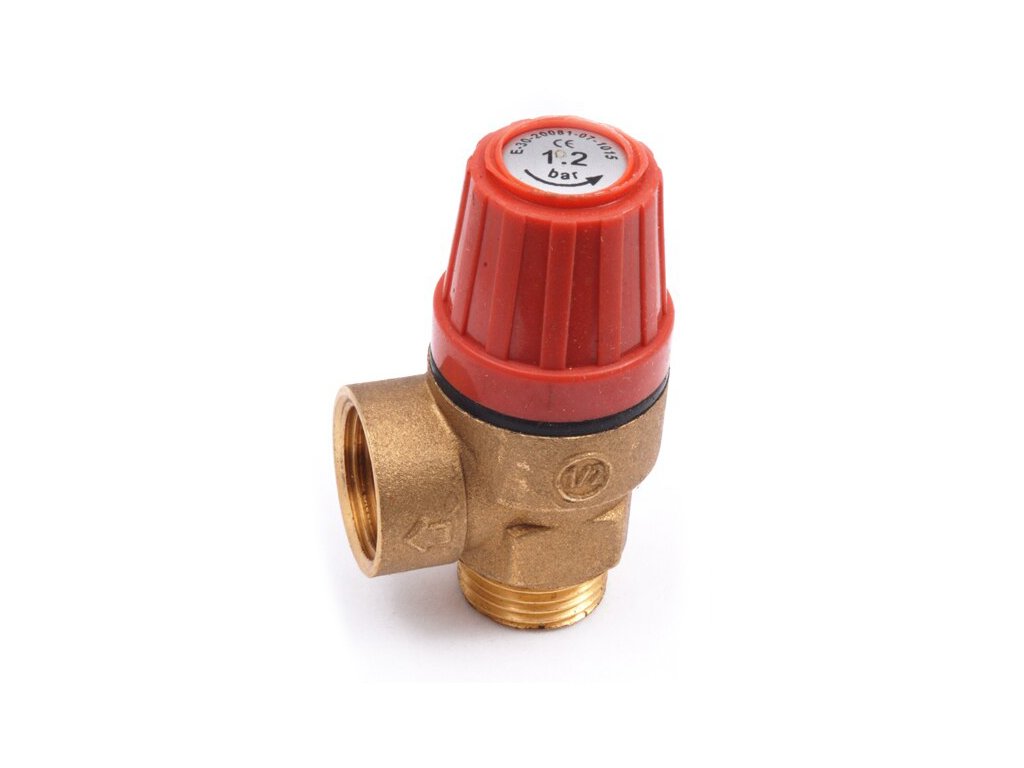

• Of course, there is included pressure control of 1.2BAR with a safety valve.
• System is equipped with new technology of energy saving – the button ECO.
• This button is placed inside the cabin and if needed it is ready for effective, economical and immediate steam temperture cut-down in a cabin.
• In order to ensure safety and long lifetime, the top line of generators OC,,B, is equipped with intelligent system of heating spirals, so the highest positioned spiral can be heated as the last one if necessary.
• The highest spiral are the most used ones.
• The system of OC ,,B,, is also equipped with automatic decalcification program after each system turn-off and valve release.
• These models of the top serie offer automatic cleaning mode which operates on a basis of quick steaming, other practical features are low energetical operation and output selection from 3kW to 18kW.
• 24-month-warranty.
• This model is approved and aligned with European norms and standards with CE quality certificate and suitable for commercial operation.
• Package contains:  a steam jet, a control panel with a cable, an economic buton ECO, a pressure valve, a heating sensor and automatic system of decalcification.

Oceanic OCA series with Steam On Demand function for Light Duty Commercial operation upto 20hrs per week.

This robust steam generator will fill your room up with steam within minutes. Manufactured using top quality Teflon coated incalloy elements resist scaling and are switched sequentially to maintain a constant temperature. The simple to use IP65 digital control system can be installed inside the wetroom providing continuous steaming to 60oC for up to 4 hours. Real time diagnostics are clearly displayed. A lighting circuit can also be switched via the keypad.

Auto flush and drain cycles to help prevent build up of limescale reducing the amount of maintenance. The steam inlet nozzle includes facility for crushed herbs and essential oils for aromatherapy.

Steam On-Demand Function. The steam on-demand button can be located inside or outside the steam room for the customers to operate. Once pressed the generator delivers steam for 30 minutes and then stops until the button is pressed again saving energy, extending generator life and reducing costs during quieter periods of operation.

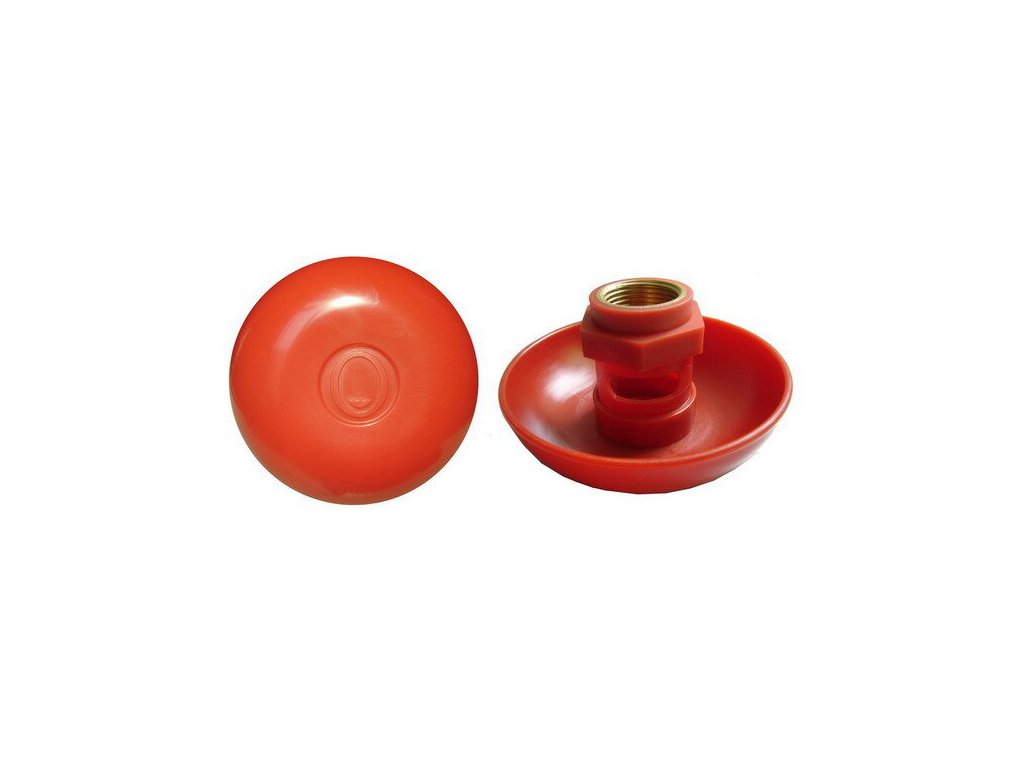

All of our commercial models feature a bright red high visibility steam inlet nozzle. Safety features include boil dry protection, thermal overload safety cut out and pressure release valve. Complete with installation instructions, 24 months guarantee.

 Guide to building a steam room – PDF

Specification

• Voltage: 230/400 V
• Input: 9 kW
• Phase N~: 1/3
• Current A: 39/13
• Pressure protection: 1.2 BAR
• Room capacity: 4 – 6 m³ – High Density Rooms (Stone/Ceramics), 6 – 10 m³ Low Density Rooms (Plastic/Laminates)
• Steam Output m³/hour under 0.1mpa: 20,25
• Water consumption kgs/hour: 11,25
• Dimensions (l, w, h): 580×260×500 mm
• Number of elements: 3 × 3 kW

Important

• Read the manual before installation and product usage.
• This device must be connected to an insulating pole.
• This equipment must be installed by a competent person.
• Disconnect from power source before manipulation with electrical contacts.
• Confirm the correct voltage for your steam generator 1 or 3 phases.

Safety precautions for steam spa

• Elder people, pregnant women or people with heart conditions, high blood pressure, diabetes or any other health conditions shall consult with an expert before steam spa use.
• In a steam room there is a smoking ban.
• Avoid entering the steam room after work-out.
• Do not use the steam room if under alcohol influence.
• Exit the steam room immediately if you feel drowsy, sick or any other discomfort.
• Ensure the steam room to be properly ventilated.
• It is not recommended that this product is used by people younger 16 years.
• If for commercial use the operator should place these safety precautions visibly to inform users.

SPA Components has completed full training of Oceanic steam generators and we have all spare parts available for service. Therefore, we provide a complete post-warranty service on site at the customer throughout the country. You can also send the steam generators to our branch or we can organize the transport ourself.
