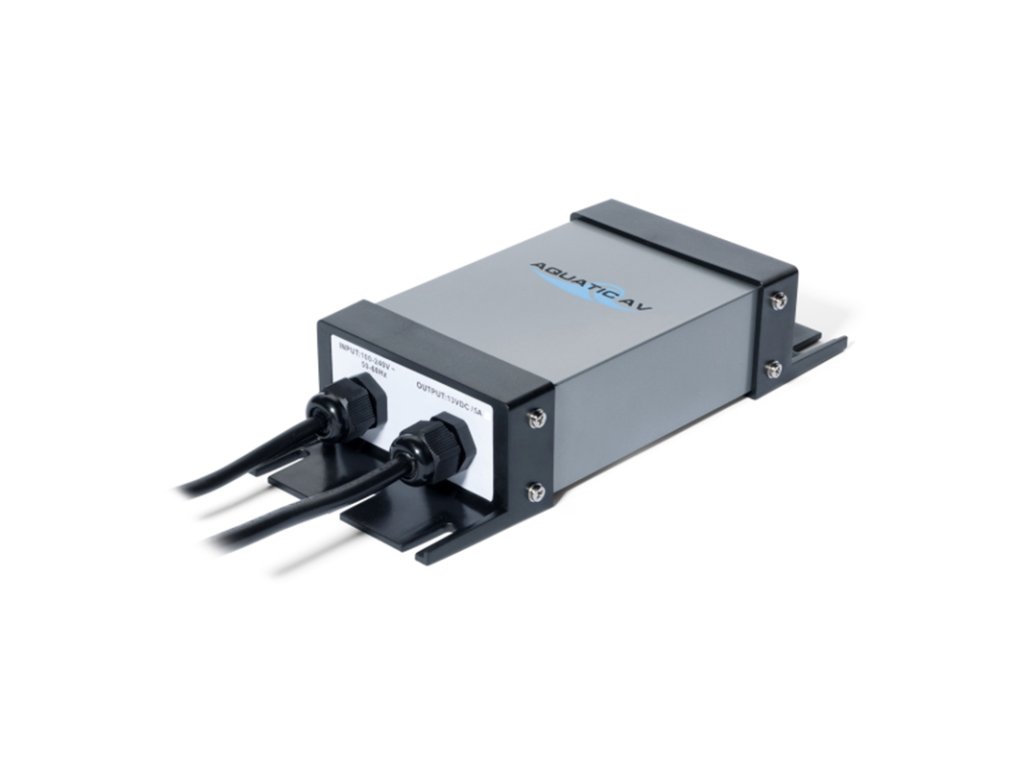

PSB-1 100W 110/240V AC 4-pin Amp/Molex Connector

Product detailed description

Product description

Do you need a new dual input power supply? The PSB-1 110/240V 4-pin Amp/Molex connector is an excellent choice! Designed to withstand common hazards ranging from water to over voltages and over temperatures, the PSB-1 is a truly durable and reliable piece of equipment.

• 110/240V AC Input Voltage with a power factor of 0.9 or greater
• Has a power efficiency of 87% or greater
• Durable against water, over voltages, over currents, and over temperatures.
• Compatible Output Connector: 12 V DC Female Spade Connectors

Technical Specifications:

• Type: Regulated switching mode power supply (≤10A, 13V DC)
• Waterproof: Yes – IPx5
• Input Voltage: 100–240V AC (power input auto sensing/switching)
• Input Frequency: 50/60 Hz
• Efficiency: ≥87%
• Power Consumption: ≤0.5W (at 240V AC)
• Power Factor: ≥0.9 (at full load)
• Short Circuit Protection: Con­tinuous
• Output Plug: 2× female spade connectors (+13V DC (red), Neg (black))
• Output Voltage: 13V DC regulated
• Output Current: 5A
• Ripple & Noise: 260mV (max)
• Operating Temperature: -20°C – 70°C
• Dimensions: 49 × 234 × 1­10 mm
• Certification­s: UL1563 class2, UL1310, CSA, CE
