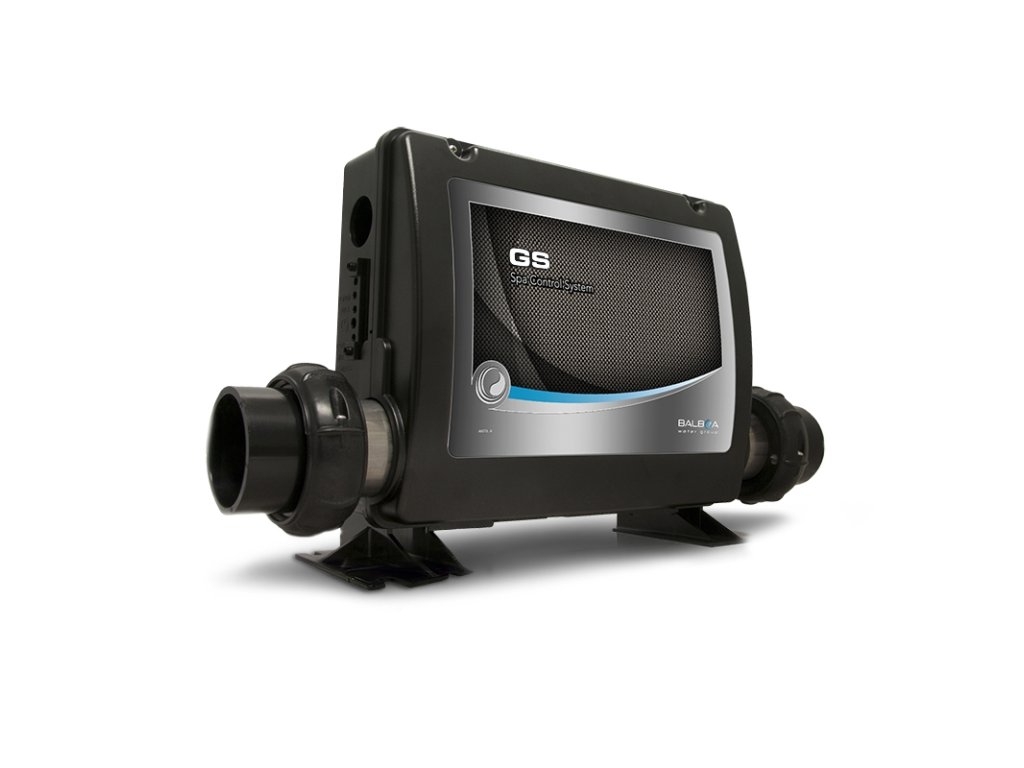

Wellis Control Unit GS523DZ - 3.0kW - ACM0190

The serie of the control systems of the serie Global Series (GS) has been designed to provide reliability, ensure easy installation and operation.

• RoHS acceptable / Environment friendly
• European safety approval
• Multilevel diagnostic function
• Better installation and service

The control systems of the company Balboa provide reliable and trouble-free operation of a whirpool, and are compatible with the most whirpools.

The control systems GS, GL and BP are supplied with the latest technology M7 which means there are no other external thermal sensors needed, the same applies to pressure and flow switches. This technology consists of two sensors M7, one at each end of the heater which offers better way of water flow and water temperature detection.

Compatible controllers

This control unit is compatible with Balboa VL series Deluxe such as VL801D, VL802D.

Specifications

• Pump 1: single-speed or two-speed massage pump + circulation pump, if required.
• Pump 2: single-speed massage pump
• Pump 3: single-speed massage pump
• Compressor: 1 × (optional)
• Heating: 1 × (3kW)
• Ozonizer: 1 ×
• Lighting: 1 × 12V
• Possibility to connect TV / AV, radio
